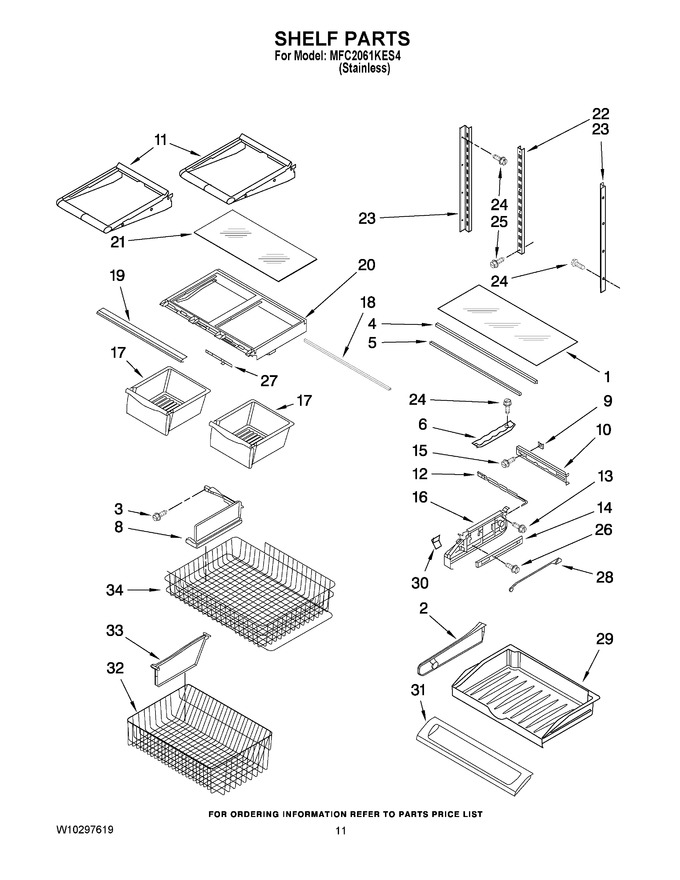

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces: 12204829) |
|
Immediately | $ 227.75 | ||||
| 2 | WP67002321 | Divider, Pantry Drawer (Replaces: 12709301) |
|
$ 30.41 | |||||
| 3 | 12990601 | Screw |
|
- | |||||
| 4 | W11812285 | Extr, Glass Support (2) (Replaces: 12655902SP) |
|
$ 48.00 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 97.52 | |||||
| 6 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.09 | ||||
| 8 | 12693802 | Divider, Upper Basket |
|
- | |||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 19.88 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 133.96 | |||||
| 11 | WP12463911 | Shelf, Glide (4) (Replaces: 12463911) |
|
$ 278.35 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 70.64 | ||||
| 13 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 7.54 | |||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 268.25 | ||||
| 15 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 16 | WP12656018 | Endcap, Pantry (right) (Replaces: 12656018) |
|
Immediately | $ 54.98 | ||||
| 16 | WP12656105 | Endcap, Pantry (left) (Replaces: 12656105) |
|
Immediately | $ 52.57 | ||||
| 17 | WP67002659 | Pan, Crisper (2) (Replaces: 12531105SP) |
|
Immediately | $ 154.16 | ||||
| 18 | WP12227304WD | Brace, Crisper (Replaces: 12227304WD) |
|
$ 97.82 | |||||
| 19 | WPW10231485 | Trim, Crisper (Replaces: W10231485) |
|
$ 99.58 | |||||
| 20 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 221.13 | |||||
| 21 | WP67006655 | Glass, Crisper Cover (Replaces: 12204821) |
|
Immediately | $ 223.82 | ||||
| 22 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 23 | W10251971 | Ladder, Side |
|
$ 53.52 | |||||
| 24 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 25 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 12.41 | |||||
| 26 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 7.71 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 28 | 67003794 | Rod, Temperature Control (Replaces: 12655303) |
|
$ 12.44 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
Immediately | $ 129.86 | ||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 27.58 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 12656815) |
|
Immediately | $ 177.49 | ||||
| 32 | 13016004 | Basket, Freezer (lower) |
|
- | |||||
| 33 | 12659606 | Divider, Lower Basket |
|
- | |||||
| 34 | 12896404 | Basket, Freezer (upper) |
|
- |
