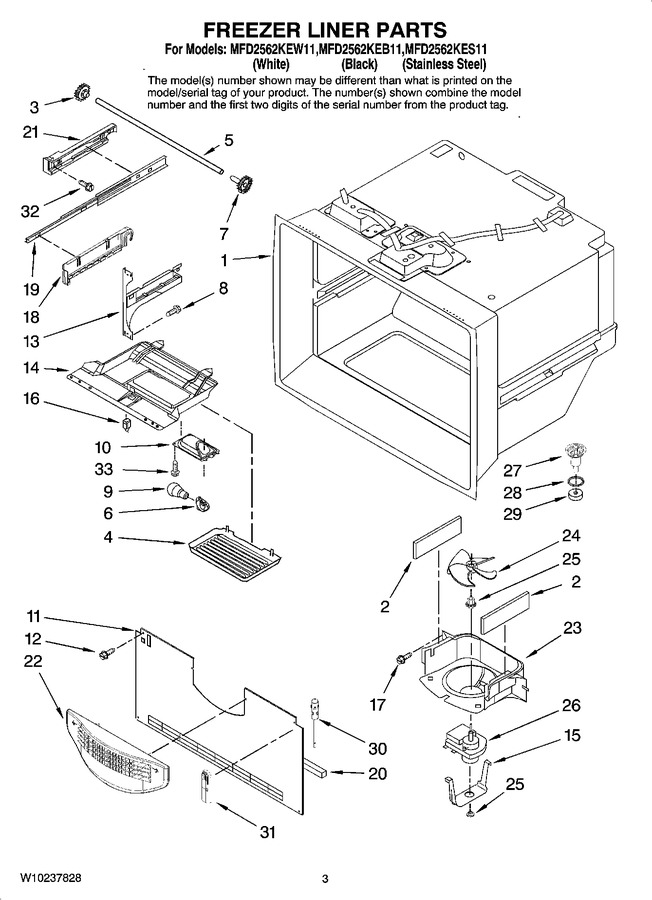

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 20.26 | ||||
| 4 | 67003905 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 67004017) |
|
$ 29.92 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 12.48 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 20.26 | ||||
| 8 | WP98165 | Screw (8) (Replaces: 67006473) |
|
$ 7.71 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422) |
|
Immediately | $ 10.17 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
$ 81.10 | |||||
| 11 | W11727809 | Cover, Evaporator (Replaces: 67005873) |
|
$ 84.62 | |||||
| 12 | 67006425 | Screw (4) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330991 | Bracket-door (left) (Replaces: W10122147) |
|
$ 147.88 | |||||
| 13 | WPW10330993 | Bracket-door (right) (Replaces: W10122148) |
|
$ 149.48 | |||||
| 14 | 67003906 | Housing, Lighting |
|
$ 116.80 | |||||
| 15 | 10623002 | Clip, Evap Motor |
|
$ 10.90 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 67005653) |
|
Immediately | $ 33.57 | ||||
| 17 | WP98165 | Screw (2) (Replaces: 67006287) |
|
$ 7.71 | |||||
| 18 | WPW10280608 | Cradle, Basket (left) (Replaces: W10187668) |
|
$ 82.94 | |||||
| 18 | WPW10280613 | Cradle, Basket (right) (Replaces: W10187667) |
|
$ 82.94 | |||||
| 19 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 202.03 | ||||
| 20 | W11159728 | Gasket, Bottom (Replaces: 67002492) |
|
Immediately | $ 25.97 | ||||
| 21 | W10128119 | Adapter, Slide (right) |
|
- | |||||
| 21 | W10128118 | Adapter, Slide (left) |
|
- | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: W10175909) |
|
Immediately | $ 77.15 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: W10167023) |
|
Immediately | $ 94.12 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 45.72 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 70.88 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 46.35 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.00 | |||||
| 30 | 12002355 | Thermistor |
|
Immediately | $ 44.10 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.39 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 67006406) |
|
Immediately | $ 7.70 | ||||
| 33 | 67006530 | Screw |
|
- | |||||
| NI | 67006095 | Harness, Fz Module |
|
- |
