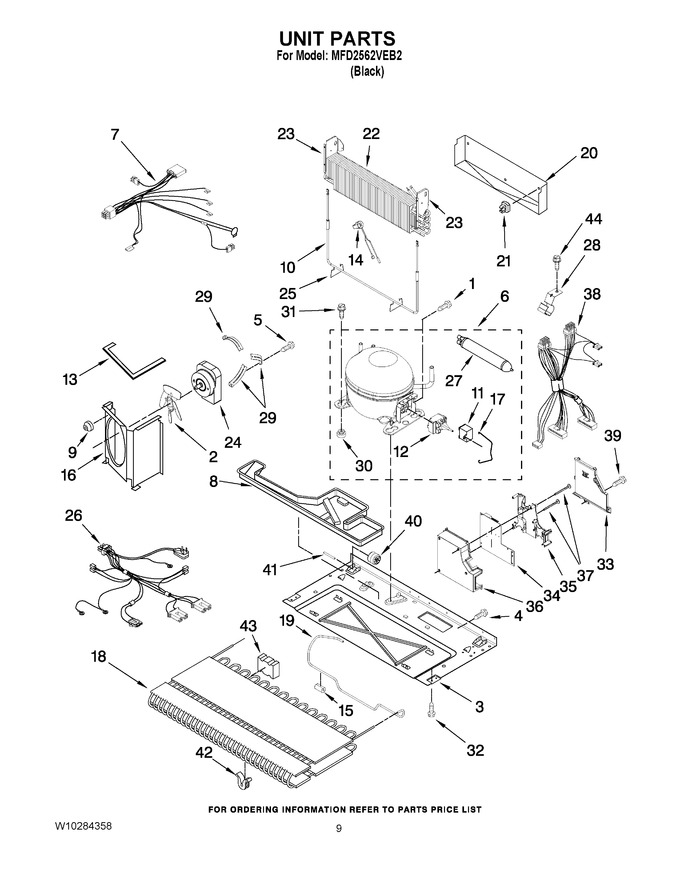

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.80 | ||||
| 3 | 12457109 | Basepan |
|
- | |||||
| 4 | 67006425 | Screw (2) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WP67004954 | Screw (3) (Replaces: M1261402) |
|
$ 8.18 | |||||
| 6 | W10160407 | Compressor (incudes Items 11,12,17,27, & 30) (Replaces: W10134623) |
|
$ 629.92 | |||||
| 7 | W10171661 | Harness, Evap Heater |
|
$ 35.79 | |||||
| 8 | WP12579803 | Pan, Drain (Replaces: 12579803) |
|
$ 257.73 | |||||
| 9 | 61004743 | Grommet (3) |
|
$ 5.51 | |||||
| 10 | WP67002493 | Heater, Defrost (Replaces: 12729105) |
|
Immediately | $ 153.46 | ||||
| 11 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 12 | WPW10197428 | Start Device (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 13 | WP854334 | Gasket (Replaces: 61003210) |
|
$ 13.94 | |||||
| 14 | WPW10165425 | Thermostat, Def. (Replaces: 12639324SP) |
|
Immediately | $ 76.53 | ||||
| 15 | 67005680 | Grommet (2) (Replaces: 12578602) |
|
$ 22.10 | |||||
| 16 | 12575309 | Shroud |
|
$ 185.38 | |||||
| 17 | W10204187 | Clip, Capacitor |
|
- | |||||
| 18 | WPW10346415 | Condenser (Replaces: W10135026) |
|
$ 352.15 | |||||
| 19 | W10183708 | Tube, Discharge |
|
- | |||||
| 20 | W11547653 | Tray, Drip (Replaces: 12225403WD) |
|
$ 57.02 | |||||
| 21 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 22 | 12002041 | Evaporator Kit (inc. Evap., Heat Shield, & Instr. Sheet) |
|
$ 366.06 | |||||
| 23 | 12225601 | Dam (left Side) |
|
$ 26.50 | |||||
| 23 | 12225701 | Dam (right Side) |
|
- | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | 13060202 | Harness, Mc |
|
$ 96.21 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | 10547003 | Clip, Drier |
|
- | |||||
| 29 | WP67004953 | Bracket, Fan Motor (Replaces: 12826401) |
|
$ 72.27 | |||||
| 30 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
$ 7.55 | |||||
| 31 | 12846902 | Screw (3) |
|
$ 13.64 | |||||
| 32 | 12992101 | Screw (4) |
|
- | |||||
| 33 | 12889302 | Cover, Hv Box |
|
- | |||||
| 34 | 12782036SP | Board, Hv Control (inc. Inst. Sheet) |
|
$ 305.21 | |||||
| 35 | 12889501SP | Spacer, Hv Box |
|
- | |||||
| 36 | 12889401SP | Box, Hv |
|
- | |||||
| 37 | 12990304SP | Screw (2) |
|
- | |||||
| 38 | 12972902SP | Harness, Hv |
|
- | |||||
| 39 | 12990502 | Screw, Cover |
|
- | |||||
| 40 | 12477102 | Roller (2) |
|
Immediately | $ 7.38 | ||||
| 41 | 67006434 | Axle (2) (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 42 | WPW10137529 | Grommet (4) (Replaces: W10137529) |
|
$ 8.76 | |||||
| 43 | 12933001 | Block, Condenser |
|
- | |||||
| 44 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs.(r-134a)) |
|
- |
