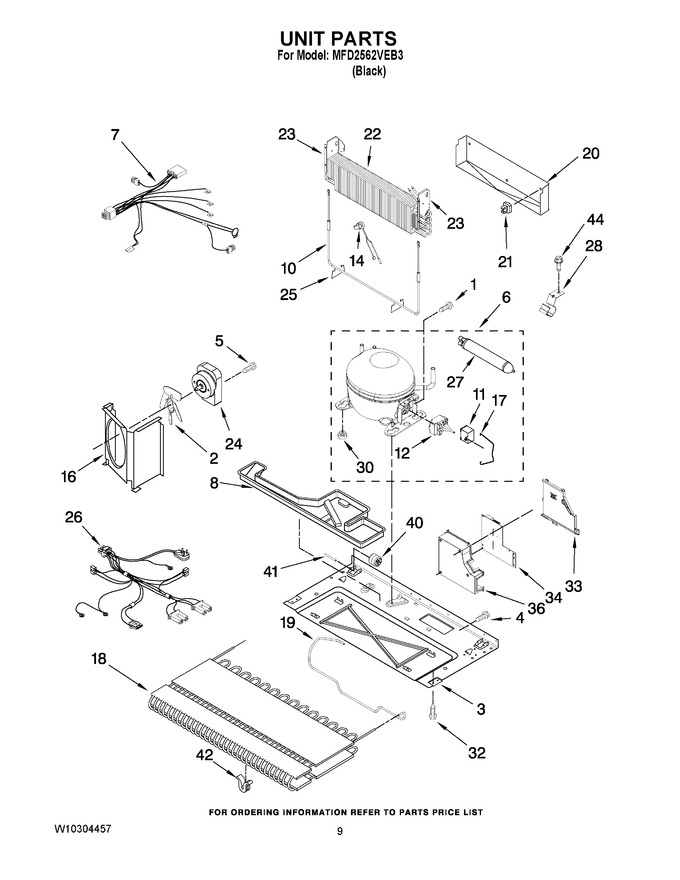

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 80.15 | ||||
| 3 | W11727651 | Basepan (Replaces: W10210985) |
|
$ 99.50 | |||||
| 4 | 67006425 | Screw (2) (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 5 | W10829281 | Screw (3) (Replaces: W10216919) |
|
$ 11.95 | |||||
| 6 | W10233960 | Compressor (incudes Items 11,12,17,27, & 30) (Replaces: W10164016) |
|
Immediately | $ 485.41 | ||||
| 7 | W10911102 | Harness, Evap Heater (Replaces: W10224515) |
|
Immediately | $ 92.93 | ||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10296785) |
|
Immediately | $ 94.68 | ||||
| 10 | W10825088 | Heater, Defrost (Replaces: 12729129) |
|
$ 149.54 | |||||
| 11 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 12 | WPW10194431 | Start Device (Replaces: W10194431) |
|
Immediately | $ 94.84 | ||||
| 14 | WPW10165425 | Thermostat, Def. (Replaces: 12639324SP) |
|
Immediately | $ 68.88 | ||||
| 16 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 75.28 | |||||
| 17 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.68 | ||||
| 18 | WPW10346415 | Condenser (Replaces: W10135026) |
|
$ 316.94 | |||||
| 19 | WPW10233569 | Tube, Discharge (Replaces: W10233569) |
|
$ 117.68 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 51.32 | |||||
| 21 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 22 | 12002041 | Evaporator Kit (inc. Evap., Heat Shield, & Instr. Sheet) |
|
$ 329.45 | |||||
| 23 | 12225702 | Dam (right Side) |
|
$ 14.09 | |||||
| 23 | 12225602 | Dam (left) Side) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: 12825101) |
|
Immediately | $ 129.31 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 133.36 | |||||
| 26 | W11224411 | Harness, Mc (Replaces: W10234025) |
|
$ 132.32 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 28 | 10547003 | Clip, Drier |
|
- | |||||
| 30 | WPW10169124 | Grommet (4) (Replaces: 10835903SP) |
|
$ 6.80 | |||||
| 32 | 12992101 | Screw (4) |
|
- | |||||
| 33 | W11226688 | Cover, Hv Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 34 | WPW10317076 | Board, Hv Control (Replaces: W10205552) |
|
Immediately | $ 371.56 | ||||
| 36 | W10257665 | Box, Hv |
|
$ 50.84 | |||||
| 40 | 12477102 | Roller (2) |
|
Immediately | $ 6.64 | ||||
| 41 | 67006434 | Axle (2) (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 42 | WPW10137529 | Grommet (4) (Replaces: W10137529) |
|
$ 7.88 | |||||
| 44 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 75.34 | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | N/P | Refrigerant Charge (5.25 Ozs.(r-134a)) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 |
