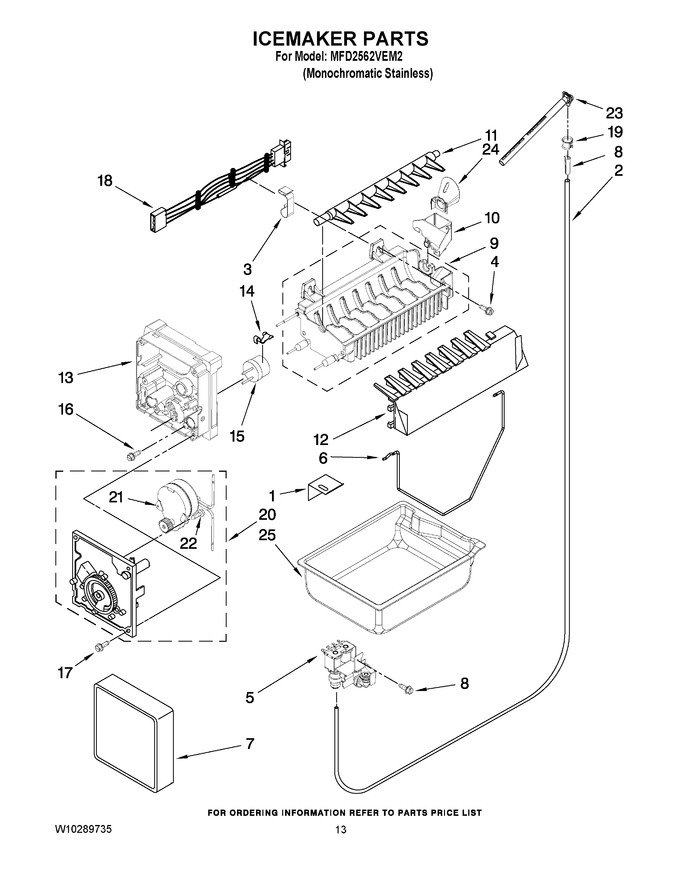

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 87.89 | |||||
| 2 | W11120581 | Tubing-plastic (Replaces: B5705333SP) |
|
$ 112.44 | |||||
| 3 | 10526702 | Clamp |
|
- | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP12544124 | Valve, Water (Replaces: 12544124) |
|
Immediately | $ 177.51 | ||||
| 6 | WP67004028 | Arm, Shutoff (Replaces: 12868001) |
|
Immediately | $ 86.33 | ||||
| 7 | WPW10289690 | Cover (Replaces: 12582501) |
|
Immediately | $ 7.94 | ||||
| 8 | WPA3223101 | Insert, Tube (Replaces: A3223101SP) |
|
$ 7.39 | |||||
| 9 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 26.24 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 12 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 98.82 | |||||
| 14 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 15 | WP627985 | Thermostat (order 542369 Cement) (Replaces: 628397) |
|
$ 103.18 | |||||
| 16 | 8533917 | Screw (2) |
|
$ 12.64 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 18 | WPD7813010 | Harness, Ice Maker (Replaces: D7813011) |
|
Immediately | $ 66.57 | ||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003SP) |
|
$ 10.44 | |||||
| 20 | 8201515 | Module Assembly (includes Items 21& 22) (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 21 | 8201515 | Motor (Replaces: W10223929) |
|
Immediately | $ 143.80 | ||||
| 22 | 489136 | Screw |
|
$ 9.72 | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: 10463203SP) |
|
Immediately | $ 107.87 | ||||
| 24 | 12918001 | Funnel, Fill Tube |
|
Immediately | $ 11.73 | ||||
| 25 | WPW10171529 | Pan Ice (Replaces: W10171529) |
|
Immediately | $ 170.60 | ||||
| 100 | D7824706Q | Icemaker Assembly (Replaces: W10190978) |
|
Immediately | $ 150.62 |
