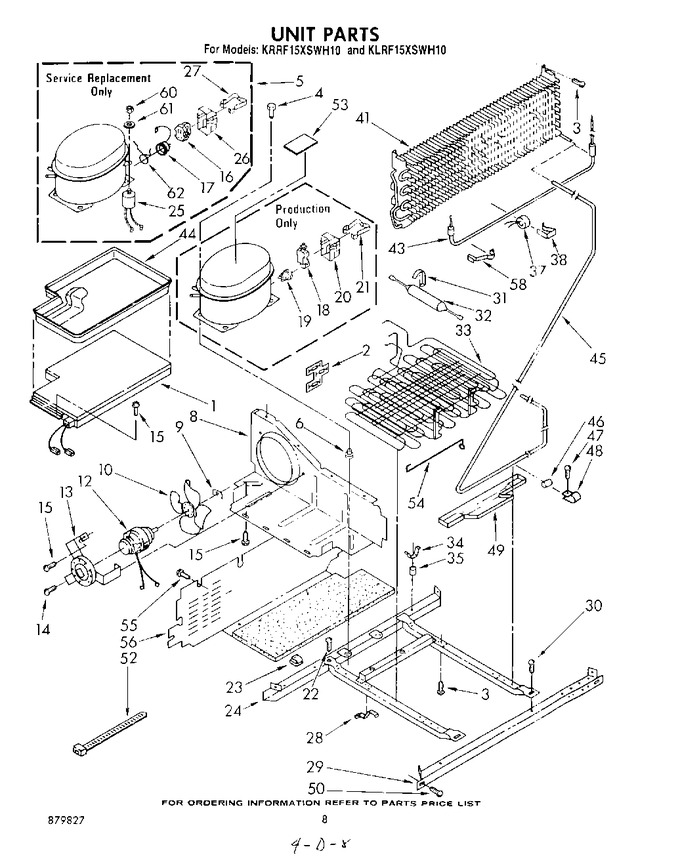

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107920		Condensate, Heater		Appelez-nous	-
2	1107667		Spacer, Condenser		Appelez-nous	-
3	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
4	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.01
5	876765		Compressor Includes Items 16, 17, 25, 26, 27, 60, 61 & 62) (also Order Tube Kit)			Immediately	$ 81.59
5	482980		Compressor Includes Items 16, 17, 25, 26, 27, 60, 61 & 62) (also Order		Appelez-nous	-
6	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
8	1107561		Baffle		Appelez-nous	-
9	WP486692		Nut, Speed   (Replaces: 486692)				$ 7.59
10	989524		Blade, Fan		Appelez-nous	-
12	833697		Motor, Fan   (Replaces: 1107714)			Immediately	$ 98.23
13	548695		Bracket, Fan Motor		Appelez-nous	-
14	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 12.34
15	488624		Screw, 8 X 3/8		Appelez-nous	-
16	WP2262181		Relay (used W/service Compressor)   (Replaces: 1108143)				$ 115.90
17	483036		Overload (used W/service Compressor)		Appelez-nous	-
18	938385		Relay (used W/original Compressor)		Appelez-nous	-
19	1108036		Overload (used W/original Compressor)		Appelez-nous	-
20	1108144		Relay Case (used W/original Compressor		Appelez-nous	-
21	938384		Spring (used W/original Compressor)		Appelez-nous	-
22	303776		Screw, Ground   (Replaces: 488879)		Appelez-nous	-
23	548745		Clip, Wire (2)		Appelez-nous	-
24	1107663		Frame		Appelez-nous	-
25	482996		Capacitor		Appelez-nous	-
26	1105015		Relay Case (used W/service Compressor)		Appelez-nous	-
27	938384		Strap, Cover (used W/service Compressor)		Appelez-nous	-
28	548744		Clip (2)		Appelez-nous	-
29	1107657		Rail, Front		Appelez-nous	-
30	489340		Screw, 5/16-18 X 5/8   (Replaces: 488683)		Appelez-nous	-
31	548508		Clamp		Appelez-nous	-
32	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 51.42
33	1107665		Condencer		Appelez-nous	-
34	548738		Clamp (4)		Appelez-nous	-
35	943447		Grommet		Appelez-nous	-
37	1107391		Defrost, Bimetal		Appelez-nous	-
38	513584		Clamp		Appelez-nous	-
41	1107503		Evaporator		Appelez-nous	-
43	989613		Heater, Defrost		Appelez-nous	-
44	1107441		Evaporating, Tray		Appelez-nous	-
45	1107511		Exchanger, Heat		Appelez-nous	-
46	510769		Dampener (2)		Appelez-nous	-
47	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 20.00
48	510716		Clamp, Tube (2)		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	488454		Screw, 1/4-28 1/2 (2)		Appelez-nous	-
52	851095		Strap		Appelez-nous	-
53	301774		Pad, Sound		Appelez-nous	-
54	851165		Guard, Fan		Appelez-nous	-
55	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.25
56	850639		Cover		Appelez-nous	-
58	548459		Clip, Heater		Appelez-nous	-
60	489142		Nut		Appelez-nous	-
61	489143		Washer		Appelez-nous	-
62	876764		Valve, Access(3/16``)			Immediately	$ 86.33
62	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
62	978029		Valve Access (5/8``)				$ 93.85
62	978030		Valve, Access (3/4``)				$ 123.53
62	1114190		Overload Spring		Appelez-nous	-
62	978026		Valve, Access (5/16``)			Immediately	$ 121.04
62	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
62	978028		Valve, Access (1/2)		Appelez-nous	-
