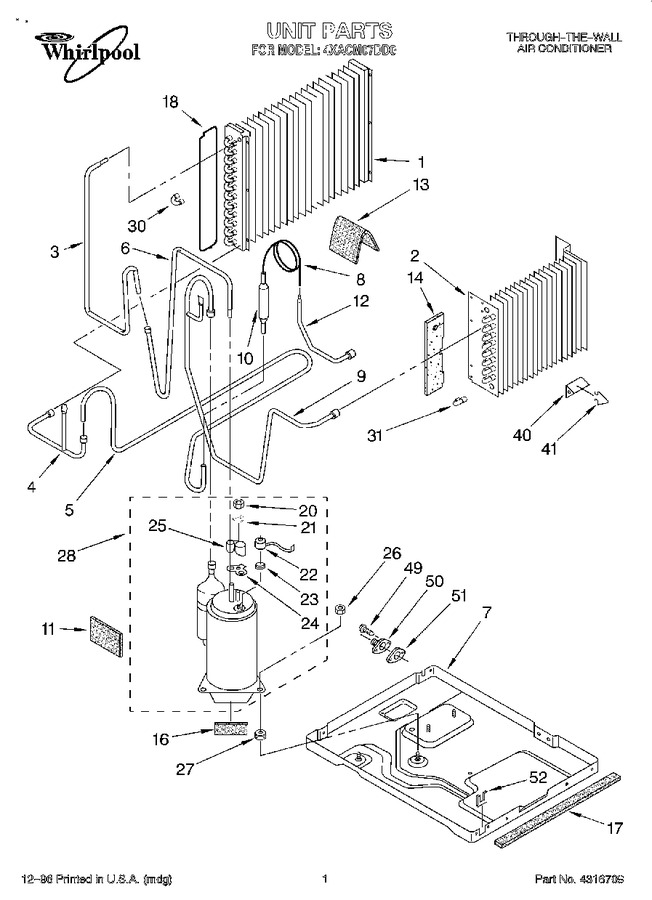

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180018		Condenser		Appelez-nous	-
2	1180024		Evaporator		Appelez-nous	-
3	1180930		Tube, Discharge (condenser)		Appelez-nous	-
4	1180684		Tube, Process		Appelez-nous	-
5	1181069		Tube, Wet Loop		Appelez-nous	-
6	1180925		Tube, Discharge (compressor)		Appelez-nous	-
7	1181036		Base		Appelez-nous	-
8	1180032		Tube, Restrictor		Appelez-nous	-
9	1180550		Tube, Suction		Appelez-nous	-
10	1180343		Strainer		Appelez-nous	-
11	1180923		Seal, Compressor		Appelez-nous	-
12	1180631		Tube, Evaporator Inlet		Appelez-nous	-
13	1162650		Insulation, Restrictor Tube		Appelez-nous	-
14	1180841		Seal, Tube		Appelez-nous	-
16	1162616		Seal, Anti-rub		Appelez-nous	-
17	1180908		Seal		Appelez-nous	-
18	1181317		Cover, Return Bend (condenser)		Appelez-nous	-
20	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.78
21	950037		Gasket, Nut		Appelez-nous	-
22	1180783		Protector, Overload		Appelez-nous	-
23	950032		Spring, Overload		Appelez-nous	-
24	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 86.68
25	WP950036		Cover, Terminal   (Replaces: 950213)				$ 10.92
26	1180339		Nut, 8mm		Appelez-nous	-
27	1181245		Grommet, Compressor Mounting		Appelez-nous	-
28	1180781		Compressor		Appelez-nous	-
30	708532		Bend, Return (12)		Appelez-nous	-
31	997669		Bend, Return (8)		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
49	1180816		Screw No.8 X 1		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180435		Deluxe Remote Owners Manual		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
52	1180471		Wiring Diagram		Appelez-nous	-
52	1181124		Owners Manual/ Installation Instructions		Appelez-nous	-
