SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow


03 - Cabinet


04 - Control Module


05 - Optional

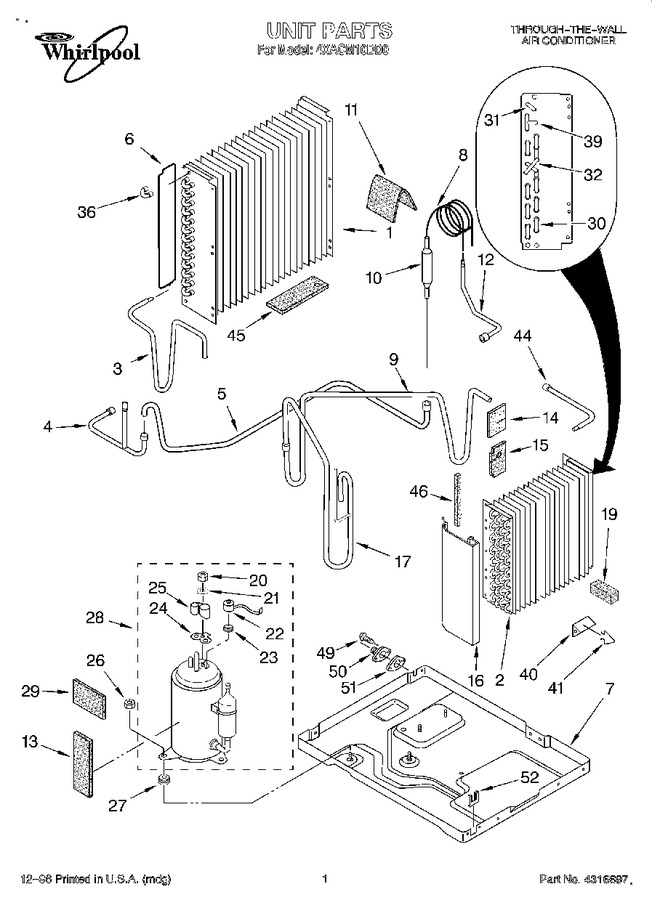

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1180794		Condenser		Appelez-nous	-
2	1180791		Evaporator		Appelez-nous	-
3	1180894		Tube, Discharge		Appelez-nous	-
4	1180287		Tube, Process		Appelez-nous	-
5	1180691		Tube, Wet Loop		Appelez-nous	-
6	1181347		Cover, Return Bend (condenser)		Appelez-nous	-
7	1180143		Base		Appelez-nous	-
8	1180519		Tube, Restrictor (2 Required)		Appelez-nous	-
9	1180900		Tube, Suction/evaporator		Appelez-nous	-
10	1180357		Strainer		Appelez-nous	-
11	1162650		Insulation, Restrictor Tube		Appelez-nous	-
12	1180509		Tube, Inlet (row 2)		Appelez-nous	-
12	1180508		Tube, Inlet (row 1)		Appelez-nous	-
13	1162616		Seal, Anti-rub		Appelez-nous	-
14	1181066		Seal, Suction Tube		Appelez-nous	-
15	1181064		Seal, Inlet Tube		Appelez-nous	-
16	1180159		Cover, Hair Pin		Appelez-nous	-
17	1180895		Tube, Suction/compressor		Appelez-nous	-
19	1181046		Seal, Return Bend		Appelez-nous	-
20	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.78
21	950037		Gasket, Nut		Appelez-nous	-
22	1156601		Overload		Appelez-nous	-
23	950032		Spring, Overload		Appelez-nous	-
24	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 86.68
25	WP950036		Cover, Terminal   (Replaces: 950036)				$ 10.92
26	1180339		Nut, 8mm		Appelez-nous	-
27	1181257		Grommet, Compressor Mounting		Appelez-nous	-
28	1180782		Compressor		Appelez-nous	-
29	1180923		Seal, Compressor		Appelez-nous	-
30	855199		Bend, Return (8 Required)		Appelez-nous	-
31	997669		Bend, Return (2 Required)		Appelez-nous	-
32	1156529		Bend, Return (1)		Appelez-nous	-
36	708532		Bend, Return (13 Required)		Appelez-nous	-
39	1180090		Bend, Return 3-way		Appelez-nous	-
40	1164141		Anticipator		Appelez-nous	-
41	475577		Clip, Anticipator		Appelez-nous	-
44	1180901		Tube, Outlet		Appelez-nous	-
45	1180926		Deflector, Water (foam)		Appelez-nous	-
46	1180984		Seal, Hairpin (cover)		Appelez-nous	-
49	1180668		Screw No.8 X 3/8		Appelez-nous	-
50	1163502		Drain Plug		Appelez-nous	-
51	1164093		Gasket, Drain Plug		Appelez-nous	-
52	1180435		Deluxe Remote Owners Manual		Appelez-nous	-
52	1180387		Protector, Cord		Appelez-nous	-
52	1180474		Wiring Diagram		Appelez-nous	-
52	1181125		Owners Manual/ Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
