SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Dispenser Front Parts

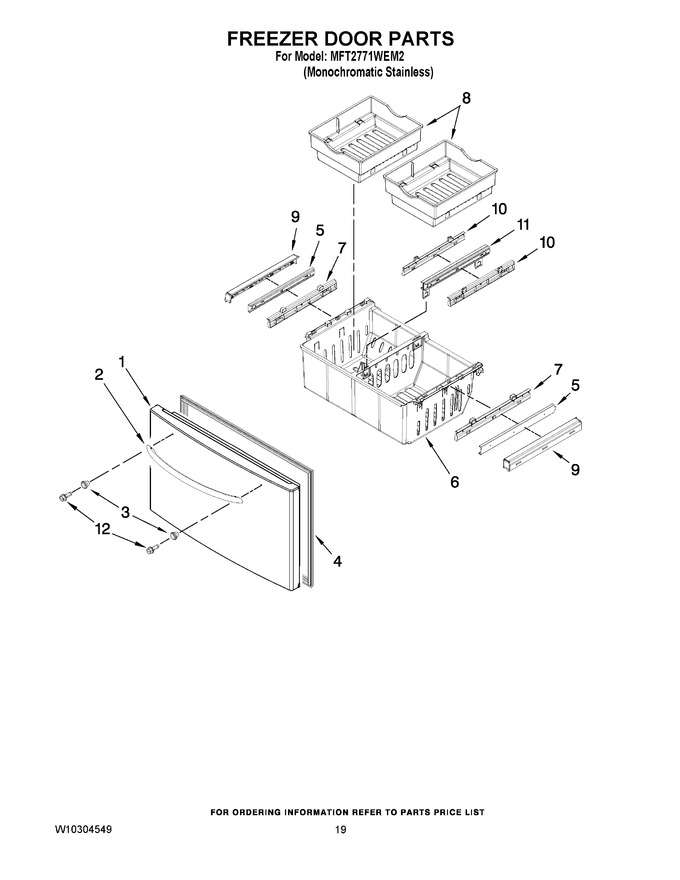

10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977831SQ		Freezer Door (apollo Grey)		Appelez-nous	-
2	WPW10138763		Handle, Door (apollo Grey)   (Replaces: W10138763)				$ 251.88
3	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.30
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 291.24
5	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 282.09
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 88.31
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 119.07
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 51.75
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 173.61
10	12925404SP		Adapter, Bin (inner)				$ 40.79
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 297.88
12	W10290759		Screw-handle				$ 5.83

    View Diagram in Separate Window       Print Part List
