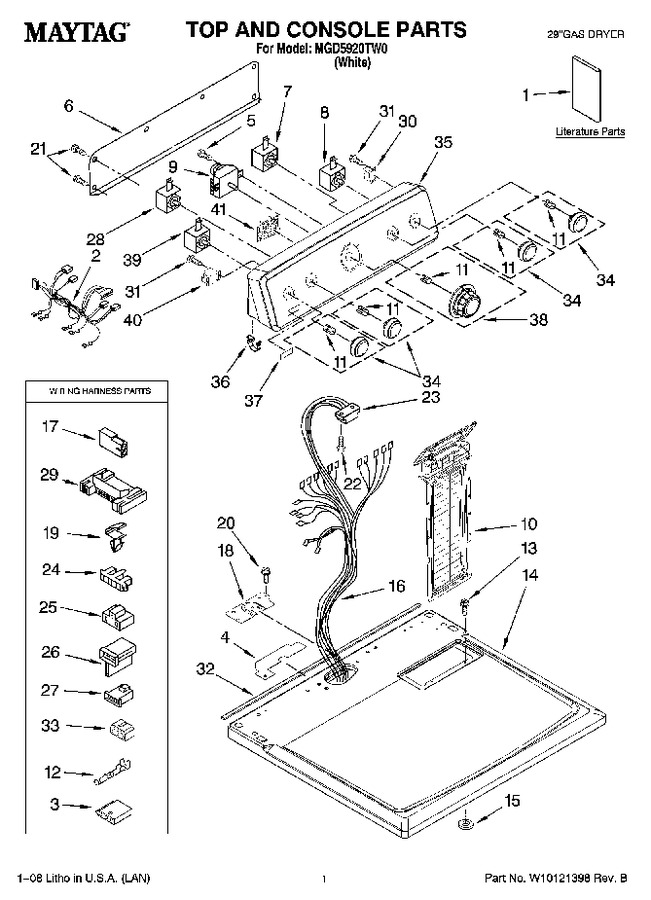

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10151548 | Dryer, Cycle Sheet (english) |
|
- | |||||
| 1 | W10151549 | Dryer, Cycle Sheet (spanish) |
|
- | |||||
| 1 | W10114944 | Tech Sheet |
|
- | |||||
| 1 | W10151609 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10151610 | Use & Care Guide (spanish) |
|
- | |||||
| 2 | W10113079 | Harness, Center Control |
|
- | |||||
| 3 | 3936144 | Connector |
|
$ 19.10 | |||||
| 4 | W10118608 | Seal-harness |
|
- | |||||
| 5 | WP90767 | Screw, 8-18 X 5/8 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 6 | W10112576 | Panel, Rear Console |
|
$ 61.99 | |||||
| 7 | 8299970 | Switch, Temperature |
|
$ 193.95 | |||||
| 8 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 9 | WP8299771 | Timer Assembly 60 Hz. (Replaces: 8299771) |
|
$ 313.08 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W10112599 | Top |
|
$ 148.65 | |||||
| 15 | 237446 | Washer (top/chute) |
|
- | |||||
| 16 | W10110878 | Harness, Wiring |
|
- | |||||
| 17 | 717252 | Plug, 2-way |
|
- | |||||
| 18 | 8565981 | Bracket, Harness |
|
- | |||||
| 19 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 20 | WP33001882 | Screw, 8-18 X 3/4 (Replaces: 337686) |
|
$ 75.34 | |||||
| 21 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 22 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 23 | 3391885 | Connector, Edge |
|
$ 81.65 | |||||
| 24 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 25 | 3401144 | Connector (pts) Relay |
|
$ 11.53 | |||||
| 26 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 27 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 28 | 3405152 | Switch, Rotary |
|
$ 117.96 | |||||
| 29 | 3395683 | Connector, Motor |
|
Immediately | $ 49.01 | ||||
| 30 | WP3405281 | Switch, Wrinkle Guard (Replaces: 3405281) |
|
Immediately | $ 49.37 | ||||
| 31 | WP3388228 | Screw, 6-20 X 1/32 (Replaces: 3388228) |
|
$ 6.57 | |||||
| 32 | W10112267 | Foam-seal Console Bracket |
|
$ 87.78 | |||||
| 33 | 3347243 | Connector 6-circuit |
|
- | |||||
| 34 | WPW10110035 | Knob, Control (3) (Replaces: W10110035) |
|
$ 54.88 | |||||
| 35 | W10086719 | Console & Control Panel Assembly (includes Item: 36 & 37) |
|
- | |||||
| 36 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 37 | W10203949 | Badge Assembly (Replaces: W10112569) |
|
$ 64.84 | |||||
| 38 | WPW10110036 | Timer Knob Assembly (Replaces: W10110036) |
|
$ 58.91 | |||||
| 39 | 3405152 | Switch, End Of Cycle |
|
$ 117.96 | |||||
| 40 | WP3405281 | Relay, Motor (Replaces: 3405281) |
|
Immediately | $ 49.37 | ||||
| 41 | W10116567 | Control Assembly |
|
$ 301.42 |
