01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts

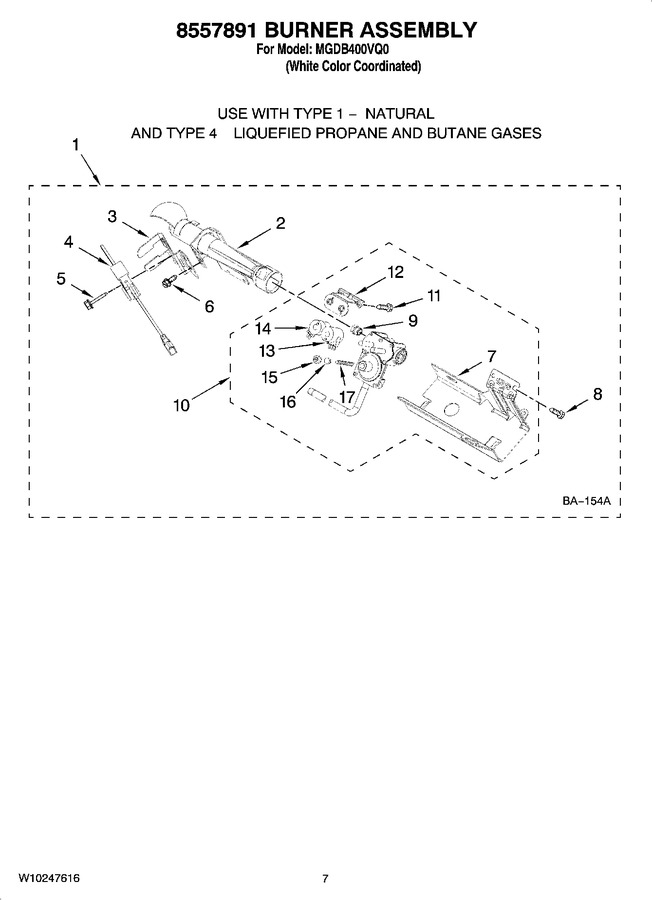

04 - 8557891 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8557891 | Burner Assembly 60 Hz. (type 1) (white Rodgers) (Replaces: 8557891) |
|
$ 336.58 | |||||
| 2 | WPW10536683 | Tube, Burner (Replaces: 8573010) |
|
$ 160.26 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 24.50 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 71.01 | ||||
| 5 | WPW10366705 | Screw & Washer (8-32 X 7/8) (Replaces: 3393909) |
|
$ 7.09 | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 7 | 8544751 | Base, Burner |
|
- | |||||
| 8 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 3387057) |
|
Immediately | $ 6.80 | ||||
| 9 | WP229742 | Orifice, Burner (type 4 (propane)) (Replaces: 229742) |
|
$ 32.93 | |||||
| 9 | 15422 | Orifice, Burner (type 4 (butane)) |
|
$ 3,097.28 | |||||
| 9 | WP15418 | Orifice, Burner Type 1 (Replaces: 15418) |
|
$ 33.59 | |||||
| 10 | WP8573071 | Valve, Gas 60 Hz. (complete) (includes Pipe & Illus. 7). (Replaces: 8573071) |
|
$ 375.26 | |||||
| 11 | 694421 | Screw, 8-32 X 1/2 (2) |
|
- | |||||
| 12 | 8182790 | Bracket, Coil |
|
- | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 29.57 | ||||
| 14 | 279834 | Coil, 60 Hz.(split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 29.57 | ||||
| 15 | WP694424 | Leak, Limiter (Replaces: 694424) |
|
$ 32.67 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 6.57 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 22.93 | |||||
| NI | 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | |||||
| NI | W11581317 | Conversion Kit (type (1) To Type (4) Lpg). (Replaces: 8576846) |
|
Immediately | $ 83.85 | ||||
| NI | 4392067 | Kit, Dryer Repair (Replaces: 80047) |
|
Immediately | $ 56.03 | ||||
| NI | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
Immediately | $ 11.11 | ||||
| NI | 346764 | Kit, Hold-down (gas Dryer Mobile Home Installation) |
|
- | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 36.11 | ||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | |||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 11.07 |
