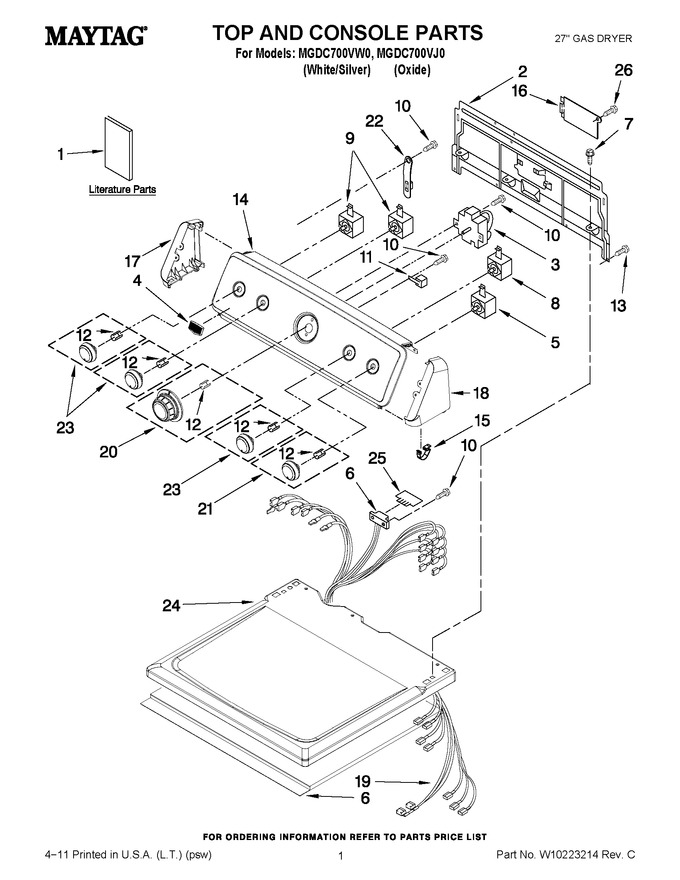

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10296135 | Guide, Install |
|
- | |||||
| 1 | W10233611 | Wiring Diagram |
|
- | |||||
| 1 | W10287571 | Guide, Use & Care |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 261.42 | |||||
| 3 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 292.32 | ||||
| 4 | W10101390 | Badge |
|
- | |||||
| 5 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 129.39 | ||||
| 6 | W10123956 | Dampening Panel |
|
- | |||||
| 7 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | W11106324 | Switch, Rotary Temperature (Replaces: 3405155) |
|
$ 235.13 | |||||
| 9 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 152.79 | |||||
| 10 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 11 | WP694419 | Mini-buzzer (Replaces: 694419) |
|
$ 134.05 | |||||
| 12 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 13 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | W10086738 | Control Panel & Bracket Assembly (white) |
|
$ 206.34 | |||||
| 14 | W10086741 | Control Panel & Bracket Assembly (oxide) |
|
$ 211.06 | |||||
| 15 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 16 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 17 | WPW10193821 | End Cap (r.h.) (white) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 17 | W10101397 | End Cap (r.h.) (oxide) |
|
- | |||||
| 18 | W10101398 | End Cap (l.h.) (oxide) |
|
- | |||||
| 18 | WPW10193824 | End Cap (l.h.) (white) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 19 | W10206520 | Harness, Wiring |
|
- | |||||
| 20 | W10112584 | Knob, Timer Assembly (oxide) |
|
$ 133.22 | |||||
| 20 | WPW10180219 | Knob, Timer Assembly (white) (Replaces: W10180219) |
|
$ 63.34 | |||||
| 21 | W10112586 | Knob Assembly Push-to-start (oxide) |
|
- | |||||
| 21 | WPW10180220 | Knob Assembly Push-to-start (white) (Replaces: W10180220) |
|
$ 58.72 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 23 | W10112582 | Knob, Control Assembly (oxide) |
|
$ 87.97 | |||||
| 23 | WPW10180218 | Knob, Control Assembly (white) (Replaces: W10180218) |
|
$ 45.82 | |||||
| 24 | W10212718 | Top (oxide) |
|
- | |||||
| 24 | 8541355 | Top (white) |
|
- | |||||
| 25 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 329.93 | ||||
| 26 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 8.25 |
