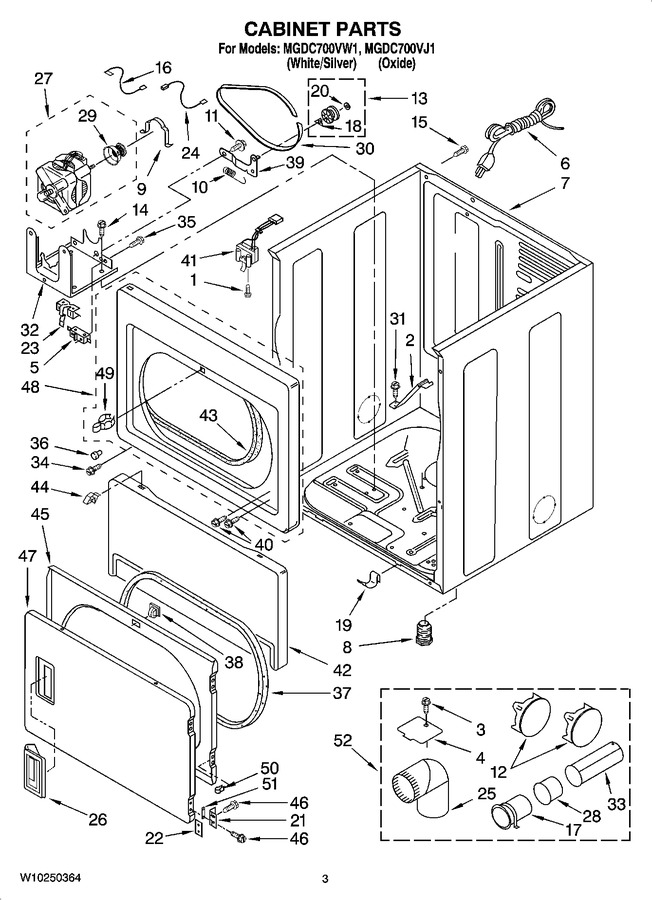

02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 8.57 | |||||
| 2 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 3 | WP488729 | Screw (Replaces: 488729) |
|
Immediately | $ 8.28 | ||||
| 4 | WPW10354249 | Plate, Cover (Replaces: 3394331) |
|
$ 9.41 | |||||
| 5 | 279782 | Switch Assembly Broken Belt (Replaces: 8066134) |
|
Immediately | $ 58.41 | ||||
| 6 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 7 | W10212721 | Cabinet (oxide) |
|
- | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: 8310656) |
|
$ 440.17 | |||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor (2) (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W10470674 | Plug, Multivent (Replaces: 697750) |
|
Immediately | $ 85.28 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 15 | W10850756 | Screw, Ground (Replaces: 8533974) |
|
$ 8.20 | |||||
| 16 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 64.66 | |||||
| 17 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 95.95 | |||||
| 18 | WPW10512946 | Tri- Ring (Replaces: 690997) |
|
Immediately | $ 9.68 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.95 | ||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | W11175815 | Hinge & Pin Assembly (Replaces: 3389247) |
|
$ 85.48 | |||||
| 22 | WP3390902 | Clip, Door Hinge (Replaces: 3390902) |
|
$ 11.67 | |||||
| 23 | WP8066120 | Lever, Snap Switch (Replaces: 8066120) |
|
Immediately | $ 34.77 | ||||
| 24 | W10167612 | Wire, Belt Switch |
|
$ 13.42 | |||||
| 25 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 28.16 | |||||
| 26 | W11209427 | Handle, Door (white) (Replaces: W10116360) |
|
Immediately | $ 79.54 | ||||
| 26 | W10212775 | Handle, Door (oxide) |
|
- | |||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 246.82 | ||||
| 28 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 82.90 | |||||
| 29 | W10837625 | Pulley, Motor (Replaces: 8578220) |
|
Immediately | $ 12.77 | ||||
| 30 | WPW10112954 | Belt, Drive (Replaces: W10112954) |
|
Immediately | $ 105.32 | ||||
| 31 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 140.27 | |||||
| 33 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 93.24 | |||||
| 34 | W10891954 | Screw, 8-18 X 3/8 (Replaces: 8281212) |
|
- | |||||
| 35 | WP98129 | Screw, 6-20 X 1 3/8 (Replaces: 98129) |
|
$ 8.18 | |||||
| 36 | 693152 | Bumper |
|
$ 11.51 | |||||
| 37 | WP3390735 | Door Seal (Replaces: 3390735) |
|
$ 137.13 | |||||
| 38 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 41 | WP3406107 | Door Switch Assembly (Replaces: 3406107) |
|
Immediately | $ 31.20 | ||||
| 42 | W10212779 | Toe, Panel (includes Item. 36) (oxide) |
|
- | |||||
| 42 | WP3406797 | Toe, Panel (includes Item. 36) (white) (Replaces: 697215) |
|
$ 250.25 | |||||
| 43 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 44 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 45 | 280083 | Door, Inner (Replaces: 3392563) |
|
$ 301.37 | |||||
| 46 | WP488627 | Screw, 8-18 X 3/8 (Replaces: 342055) |
|
$ 8.11 | |||||
| 47 | W10207719 | Door, Outer (oxide) |
|
- | |||||
| 47 | W11663440 | Door, Outer (white) (Replaces: 3387872) |
|
$ 272.34 | |||||
| 48 | W10212745 | Front Panel (oxide) |
|
- | |||||
| 48 | W10198710 | Front Panel (white) |
|
- | |||||
| 49 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 50 | 3389249 | Nut, Inner |
|
- | |||||
| 51 | W10191265 | Plug-hinge |
|
$ 46.49 | |||||
| 52 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey) (Replaces: W10186596) |
|
Immediately | $ 85.28 | ||||
| 52 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (white) (Replaces: 279818) |
|
Immediately | $ 85.28 |
