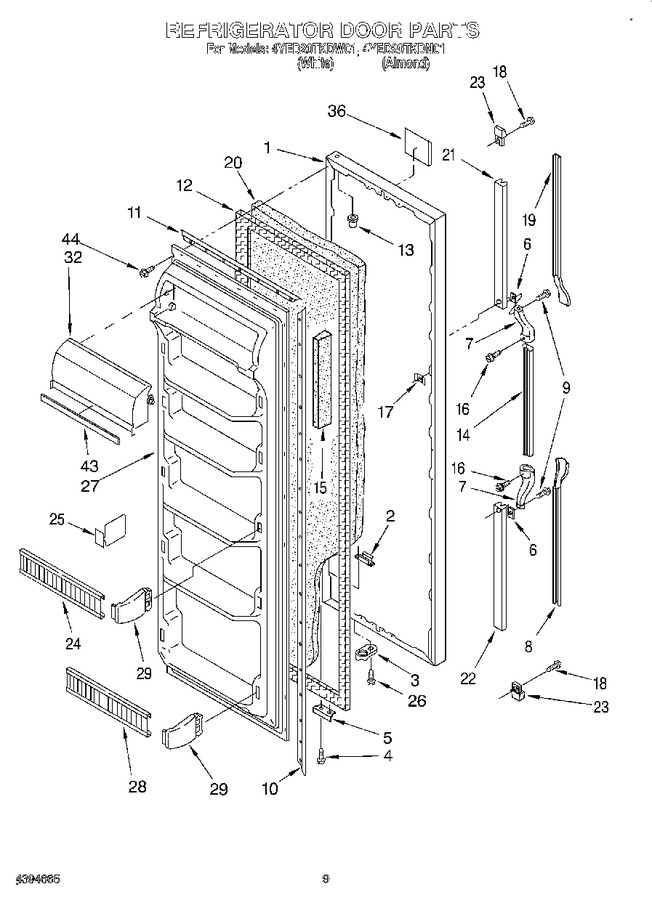

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194995N		Refrigerator Door Panel (also Order Item No.20) (almond)		Appelez-nous	-
1	2194995W		Refrigerator Door Panel (also Order Item No.20) (white)		Appelez-nous	-
2	2155335		Tap, Plate		Appelez-nous	-
3	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
4	WP489483		Screw   (Replaces: 489420)				$ 11.41
5	2195950		Bracket, Door Stop				$ 5.84
6	935075		Shim		Appelez-nous	-
7	1119359		End Cap (2)		Appelez-nous	-
8	2194773N		Insert, Bottom (almond)		Appelez-nous	-
8	2194773W		Insert, Bottom (white)		Appelez-nous	-
9	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
10	1117766		Gasket Retainer, Side (2)				$ 36.55
11	1118301		Gasket Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	2194767W		Handle, Center (white)		Appelez-nous	-
14	2194767N		Handle, Center (almond)		Appelez-nous	-
15	2152266		Reinforcement, Shelf		Appelez-nous	-
16	489022		Screw		Appelez-nous	-
17	941242		Screw Anchor		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	2194774N		Insert, Top (almond)		Appelez-nous	-
19	2194774W		Insert, Top (white)		Appelez-nous	-
20	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
21	2194771		Insert Retainer (top)		Appelez-nous	-
22	2194770		Insert Retainer (bottom)		Appelez-nous	-
23	2156220		End Cap (2)		Appelez-nous	-
24	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182187)				$ 100.56
25	2160050		Divider, Shelf		Appelez-nous	-
26	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
27	1124961		Interior Door Panel (also Order Item No.15)		Appelez-nous	-
28	2182188		Trim, Door Shelf (2)		Appelez-nous	-
29	WP2196190		Endcap Trim (left (4))   (Replaces: 2182122)				$ 14.54
29	WP2196189		Endcap Trim (right (4))   (Replaces: 2182123)				$ 14.06
32	2148289		Compartment Door		Appelez-nous	-
36	2195063		Nameplate (white)		Appelez-nous	-
36	2195064		Nameplate (almond)		Appelez-nous	-
43	2162896		Trim, Door Compartment		Appelez-nous	-
44	WP489069		Screw, (30)   (Replaces: 489101)			Immediately	$ 8.40
