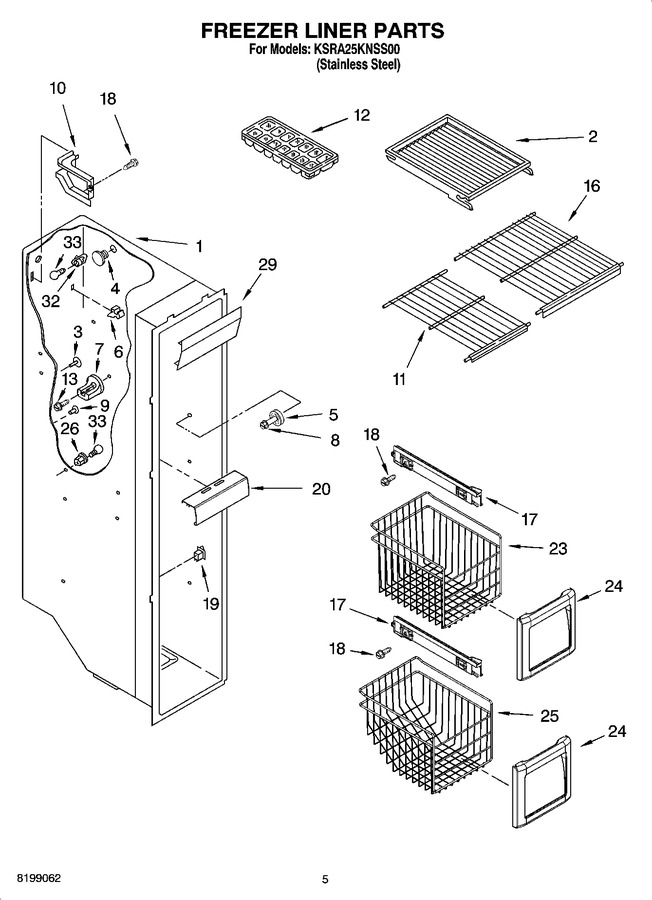

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	2171714		Shelf, Top Compartment		Appelez-nous	-
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
4	940014		Hole Plug				$ 18.33
5	WP2196483		Stud Assy   (Replaces: 2196483)				$ 9.78
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 9.85
7	2196207		Stud, Rear				$ 7.61
8	WP3400806		Screw   (Replaces: 8281158)				$ 7.29
9	2176134		Grommet (2)				$ 5.83
10	2160912		Cover, Wiring		Appelez-nous	-
11	WP2174267		Shelf   (Replaces: 2174267)				$ 84.02
12	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
13	W10142289		Screw   (Replaces: 3400893)				$ 8.65
16	2198478		Shelf		Appelez-nous	-
17	2301543		Glide Assy, Basket (left Side (2))		Appelez-nous	-
17	2301542		Glide Assy, Basket (right Side (2))		Appelez-nous	-
18	8533982		Screw		Appelez-nous	-
19	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 35.18
20	2198479		Light Lens		Appelez-nous	-
23	2301144		Basket, Square (includes 24)		Appelez-nous	-
24	2301134		Front, Basket				$ 30.78
25	2301145		Basket, Sloped (includes 24)		Appelez-nous	-
26	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 95.54
29	2171705		Light Lens				$ 94.68
32	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
33	W11679940		Bulb, Light   (Replaces: 2255743)			Immediately	$ 10.17
