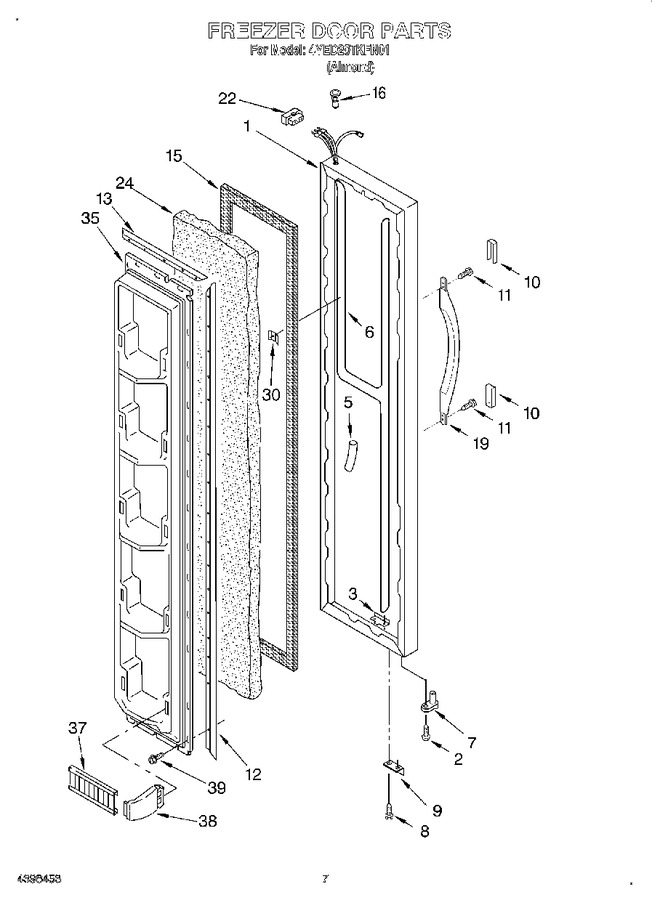

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197659N		Freezer, Door Panel (also Order Item 24)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	2196135		Tap, Plate				$ 18.96
5	2196116		Tube, Door Wiring		Appelez-nous	-
6	2165272		Heater, Door		Appelez-nous	-
7	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
8	WP489483		Screw   (Replaces: 489420)				$ 11.41
9	2195950		Bracket, Door Stop				$ 5.84
10	2193353N		Endcap, Handle (2)		Appelez-nous	-
11	WP489491		Screw   (Replaces: 489491)				$ 7.30
12	1117766		Gasket Retainer, Side (2)				$ 36.55
13	1117767		Gasket Retainer, Top & Bottom		Appelez-nous	-
15	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 368.63
16	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
19	2186649N		Handle, Center		Appelez-nous	-
22	2154491		Connector		Appelez-nous	-
24	876029		Foam Insulation		Appelez-nous	-
30	941242		Screw Anchor		Appelez-nous	-
35	2196141		Interior, Door Panel		Appelez-nous	-
37	2198484		Trim, Door Shelf		Appelez-nous	-
38	WP2196100		Support Trim End   (Replaces: 2196100)			Immediately	$ 9.09
39	WP489069		Screw, (28)   (Replaces: 489101)			Immediately	$ 8.40
