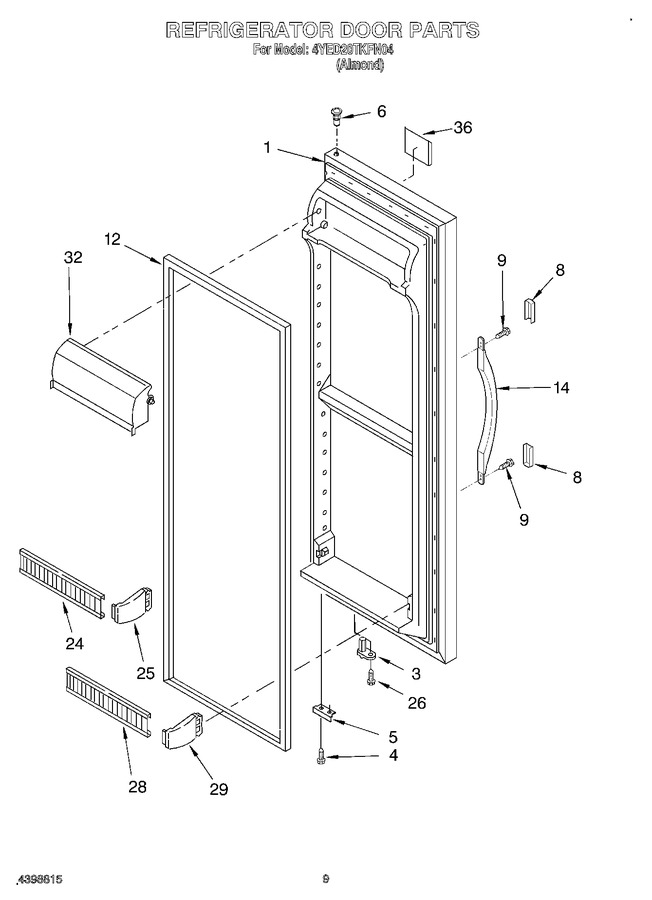

06 - Refrigerator Door
07 - Unit
08 - Control, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2198498N | Refrigerator Door |
|
- | |||||
| 3 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 7.20 | ||||
| 4 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 5 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 6 | WP2182181 | Thimble, Top (Replaces: 2182180) |
|
$ 8.15 | |||||
| 8 | 2193353N | Endcap, Handle (2) |
|
- | |||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 12 | 2159073 | Door Gasket, Magnetic (service) |
|
$ 333.19 | |||||
| 14 | 2186649N | Handle, Center |
|
- | |||||
| 24 | 2198486 | Trim, Door Shelf |
|
- | |||||
| 25 | WP2195915 | Endcap-trim (2) (Replaces: 2195915) |
|
$ 13.72 | |||||
| 26 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 28 | 2198488 | Trim, Door Shelf (4) |
|
- | |||||
| 29 | WP2195916K | Endcap, Trim (8) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 32 | WP2256101 | Compartment Door (Replaces: 2177105) |
|
Immediately | $ 89.42 | ||||
| 36 | 2195064 | Nameplate |
|
- |
