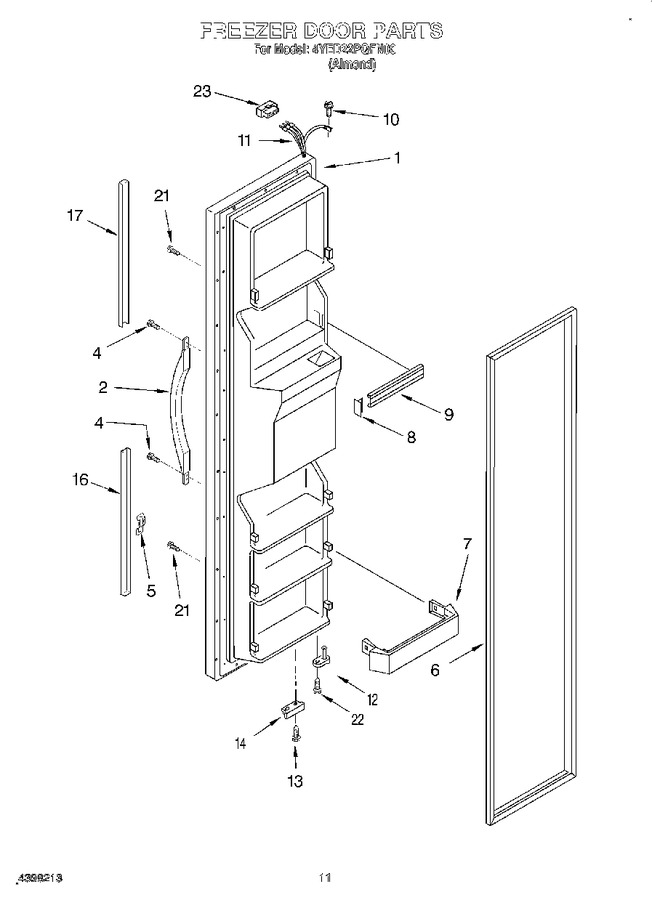

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197850N		Freezer Door (includes No.6 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2186649N		Handle, Center (almond)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	2194286		Trivet, Door Shelf (4)		Appelez-nous	-
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 24.27
10	WP488234		Screw   (Replaces: 489422)				$ 7.08
11	2198271		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
16	2194970N		Extension, Bottom (almond)		Appelez-nous	-
17	2194972N		Extension, Top (almond)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
23	WP2154473		Connector   (Replaces: 2162412)				$ 24.83
