SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts

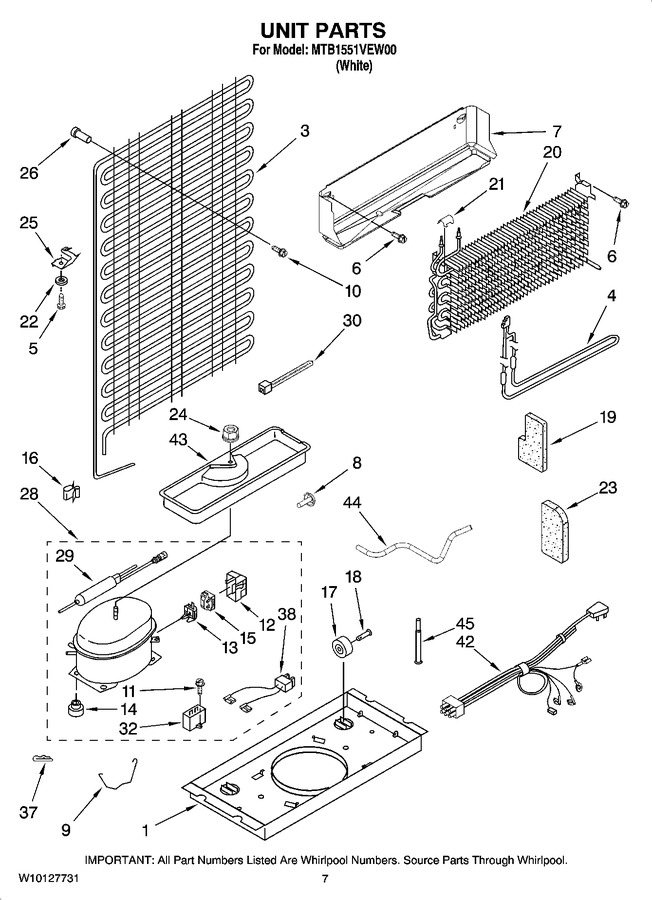

04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2221886 | Support Plate, Compressor |
|
- | |||||
| 3 | WP2252730 | Condenser (Replaces: 2252730) |
|
$ 258.56 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2256637 | Screw |
|
$ 12.18 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | 2264516 | Snap Rivet |
|
- | |||||
| 9 | 2263628 | Clip |
|
- | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | 8533919 | Screw |
|
- | |||||
| 12 | WP2162358 | Cover (service) (Replaces: 4387731) |
|
$ 85.76 | |||||
| 12 | WP2162358 | Cover (production) (Replaces: 2162358) |
|
$ 85.76 | |||||
| 13 | WP2214067 | Overload (service) (Replaces: 4390624) |
|
$ 124.42 | |||||
| 13 | WP2214067 | Overload (production) (Replaces: 2214067) |
|
$ 124.42 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.52 | |||||
| 15 | 8201647 | Start Relay (see Overload) (Replaces: 2225930) |
|
$ 170.13 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.80 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. (Replaces: 2263919) |
|
$ 292.15 | |||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 22 | 8526417 | Washer (Replaces: VS611) |
|
$ 13.18 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 11.57 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Bracket, Condenser |
|
- | |||||
| 28 | W10309988 | Compressor (includes Items 12,13,14,27,29, 32 & 38) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: 2316066) |
|
Immediately | $ 528.56 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.47 | |||||
| 32 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 32 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (production) (Replaces: 2172890) |
|
$ 7.66 | |||||
| 38 | WP2172890 | Wire Assembly (service) (Replaces: 4387765) |
|
$ 7.66 | |||||
| 42 | 2258529 | Wire Assy. Unit |
|
$ 235.97 | |||||
| 43 | 2201801 | Evap. Tray |
|
$ 78.52 | |||||
| 44 | 2264423 | Tube, Discharge |
|
- | |||||
| 45 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | ||||
| 45 | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 45 | 978028 | Valve, Access (1/2``) |
|
- | |||||
| 45 | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| 45 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 45 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 45 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 45 | 12658531CQ | Door, Refrigerator (bisque) (Replaces: 67004505) |
|
- | |||||
| 45 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 |
