SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

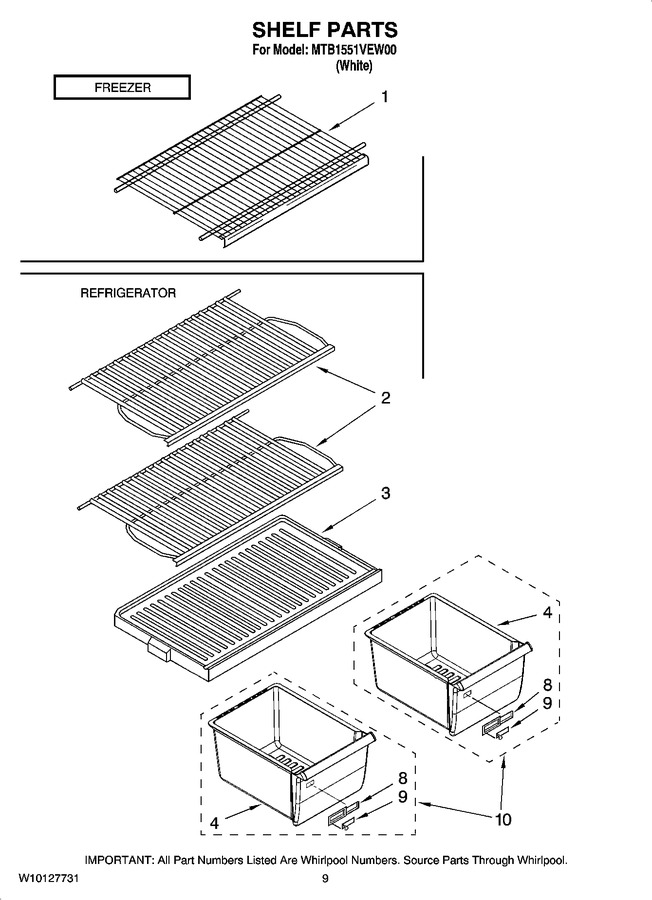

05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2192514 | Shelf-(fc) (Replaces: 2192514) |
|
Immediately | $ 107.73 | ||||
| 2 | WP2192515 | Shelf (2) (Replaces: 2192515) |
|
$ 115.61 | |||||
| 3 | WP9791600 | Crisper Cover (Replaces: 9791600) |
|
$ 150.62 | |||||
| 4 | W10804447 | Crisper Pan (Replaces: 2252931) |
|
Immediately | $ 156.75 | ||||
| 8 | W11819839 | Body, Humidity (Replaces: 2212446) |
|
$ 14.23 | |||||
| 9 | WP2176222 | Slide, Humidity (Replaces: 2176222) |
|
$ 27.35 | |||||
| 10 | W10804447 | Crisper Pan Assy. (Replaces: 2252932) |
|
Immediately | $ 156.75 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| WP72107 | Brush Touch-up Kit (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 350930 | Enamel, White (13 Oz. Spray Can) |
|
Immediately | $ 36.11 | |||||
| 253886 | Wire |
|
- | ||||||
| 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 139.50 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | ||||||
| 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | |||||
| 876370 | Kit, Insulation (2 Pcs.3`` X 24 `` X 48``) |
|
$ 218.83 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | ||||||
| 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 46.58 | ||||||
| 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 74.13 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit, Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (13 Oz. Spray Can) |
|
$ 84.73 | ||||||
| 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 218.83 |
