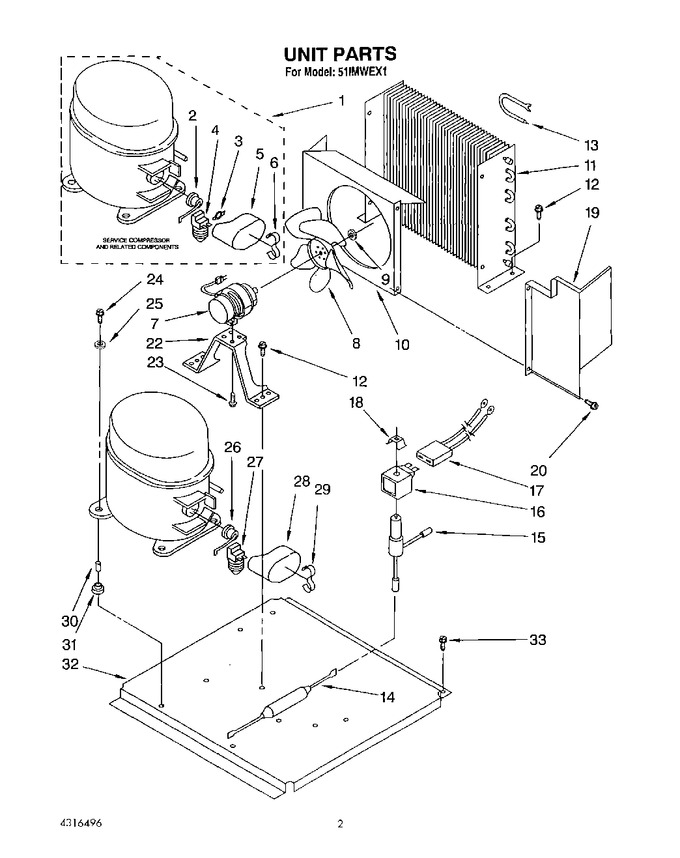

SELECT A DIAGRAM

02 - Unit, Lit/optional


03 - Water Distribution


04 - Cabinet And Front


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	598814		Compressor, Service Kit		Appelez-nous	-
2	598196		Overload		Appelez-nous	-
3	549086		Spring, Overload		Appelez-nous	-
4	598195		Relay, Start		Appelez-nous	-
5	549342		Cover, Terminal		Appelez-nous	-
6	560849		Retainer, Cover		Appelez-nous	-
7	593821		Motor, Fan (includes No.23)		Appelez-nous	-
8	572728		Blade, Fan (includes No.9)		Appelez-nous	-
9	681650		Nut, Hex 1/4-20		Appelez-nous	-
10	757955		Shroud, Condenser		Appelez-nous	-
11	756299		Condenser		Appelez-nous	-
12	681305		Screw, 1/4-20 X 1/2		Appelez-nous	-
13	756298		Accumulator		Appelez-nous	-
14	W10843121		Drier, Tube   (Replaces: 755649)			Immediately	$ 57.13
15	598086		Valve, Solenoid Coil		Appelez-nous	-
16	593639		Coil, Solenoid		Appelez-nous	-
17	587971		Harness, Wiring (solenoid Coil)		Appelez-nous	-
18	564234		Retainer, Solenoid Coil		Appelez-nous	-
19	758811		Deflector, Air		Appelez-nous	-
20	WP90767		Screw, 8-32 X 3/8 (8)   (Replaces: 681167)			Immediately	$ 8.25
22	560817		Bracket, Fan Motor		Appelez-nous	-
23	489199		Screw, 8-36 X 1/2 (4)		Appelez-nous	-
24	680233		Screw, 5/16-18 X 1-1/4 (4)		Appelez-nous	-
25	595230		Washer, Flat (4)		Appelez-nous	-
26	758638		Overload		Appelez-nous	-
27	758637		Relay, Start		Appelez-nous	-
28	1108115		Cover, Terminal		Appelez-nous	-
29	938384		Retainer, Terminal Cover		Appelez-nous	-
30	585564		Sleeve (4)		Appelez-nous	-
31	596355		Grommet (4)		Appelez-nous	-
32	758810		Base, Unit		Appelez-nous	-
33	680811		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
	LIT2165109		Owners Instructions		Appelez-nous	-
	LIT4316496		List, Repair Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
