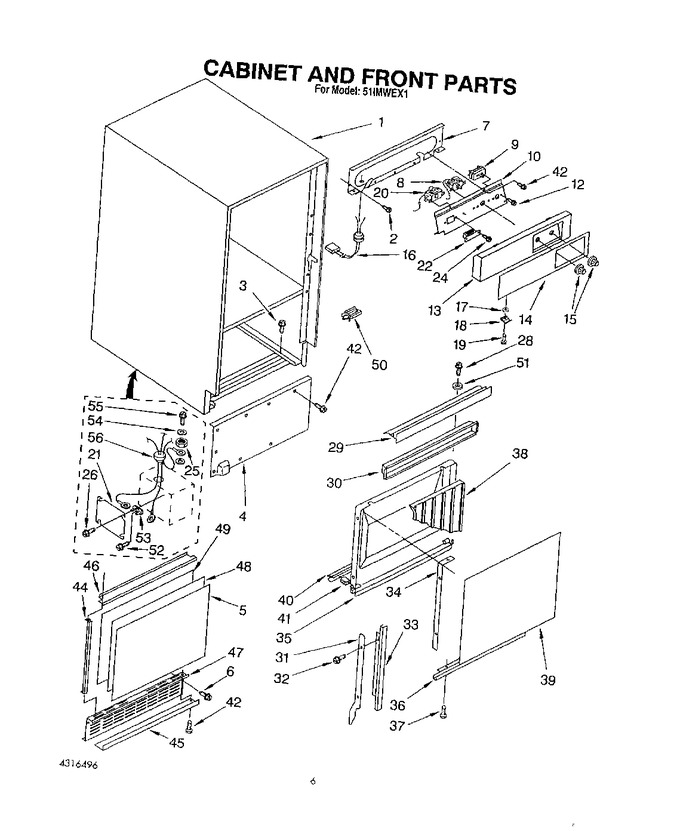

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	759117		Cabinet		Appelez-nous	-
2	WP488729		Screw   (Replaces: 489196)			Immediately	$ 8.28
3	680811		Screw, No.10-32 X 3/8		Appelez-nous	-
4	758652		Support, Cabinet Front		Appelez-nous	-
5	758720		Panel, Grille Cabinet Front		Appelez-nous	-
6	WP90767		Screw, No.8-32 X 3/8 (2)   (Replaces: 681167)			Immediately	$ 8.25
7	2165530		Panel, Rear Escutcheon		Appelez-nous	-
8	2157321		Thermostat, Evaporator		Appelez-nous	-
9	2172893		Switch, Rotary		Appelez-nous	-
10	756341		Panel, Control		Appelez-nous	-
12	WP486579		Screw, No.8-32 X 1/4   (Replaces: 595005)				$ 7.89
13	759239		Escutcheon, Control		Appelez-nous	-
14	759230		Decal Escutcheon		Appelez-nous	-
15	759053		Knob, Control (2)		Appelez-nous	-
16	757464		Harness, Wiring (cutter Grid)		Appelez-nous	-
17	681245		Washer, Latch		Appelez-nous	-
18	759123		Latch, Door		Appelez-nous	-
19	680964		Screw		Appelez-nous	-
20	2165478		Thermostat, Ice Bin		Appelez-nous	-
21	573468		Cover, Box		Appelez-nous	-
22	758309		Transformer		Appelez-nous	-
24	681036		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
25	680637		Nut, No. 1/4 (3)		Appelez-nous	-
26	486214		Screw		Appelez-nous	-
28	681419		Screw, 10 X 1/2		Appelez-nous	-
29	758622		Handle, Door		Appelez-nous	-
30	758752		Pocket, Handle		Appelez-nous	-
31	593185		Rail, Door (left Side)		Appelez-nous	-
31	593184		Rail, Door (right Side)		Appelez-nous	-
32	681459		Screw, No.8-32 1/2 (6)		Appelez-nous	-
33	758748		Trim, Door (2)		Appelez-nous	-
34	593104		Strip, Tapping (2)		Appelez-nous	-
35	758655		Liner, Door		Appelez-nous	-
36	758400		Trim, Door		Appelez-nous	-
37	681196		Screw, No.8-32 X 1/2		Appelez-nous	-
38	758608		Insulation, Door		Appelez-nous	-
39	758746		Panel, Door (white & Black)		Appelez-nous	-
40	758169		Gasket, Door		Appelez-nous	-
41	593192		Plug, Hinge		Appelez-nous	-
42	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
44	758714		Trim, Sides (2)		Appelez-nous	-
45	758717		Trim, Top & Bottom		Appelez-nous	-
46	758718		Support Panel		Appelez-nous	-
47	759132		Grille, Panel		Appelez-nous	-
48	758770		Filler, Grille Panel		Appelez-nous	-
49	758771		Panel, Inner Grille		Appelez-nous	-
50	758844		Retainer, Wire		Appelez-nous	-
51	681613		Washer (2)		Appelez-nous	-
52	WP681249		Screw 6-18 X 3/4   (Replaces: 681249)			Immediately	$ 8.25
53	938329		Connector, Terminal		Appelez-nous	-
54	668347		Lockwasher 1/4		Appelez-nous	-
55	681333		Screw, 1/4-20 X 1-1/4		Appelez-nous	-
56	758406		Harness, Cabinet		Appelez-nous	-
