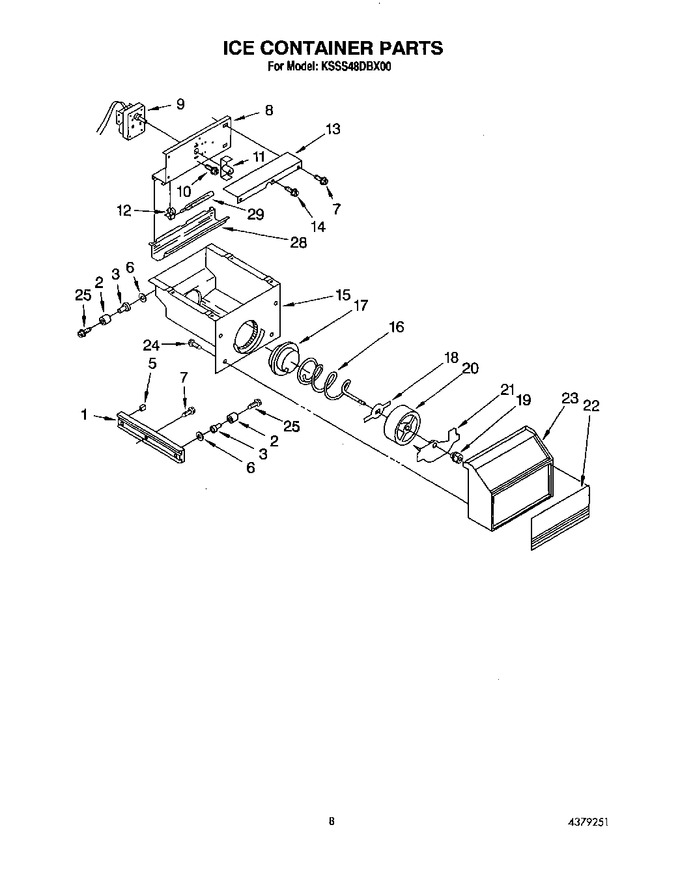

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112281		Spacer, Track (right Side)		Appelez-nous	-
1	1112282		Spacer, Track (left Side)		Appelez-nous	-
2	1113870		Roller		Appelez-nous	-
3	1113871		Eyelet, Roller		Appelez-nous	-
5	1113169		Stop, Roller				$ 11.28
6	488307		Washer		Appelez-nous	-
7	W11624204		Screw   (Replaces: 486194)				$ 14.72
8	1113127		Bracket, Motor		Appelez-nous	-
9	2155262		Motor Assembly				$ 72.79
10	WP489399		Screw   (Replaces: 489399)				$ 7.30
11	WPW10169511		Coupling, Motor   (Replaces: 983663)				$ 24.51
12	1112613		Socket, Light		Appelez-nous	-
13	1113130		Cover, Motor		Appelez-nous	-
14	00487294		Screw   (Replaces: 487294)				$ 175.09
15	1112287		Ice Container		Appelez-nous	-
16	1112378		Conveyor		Appelez-nous	-
17	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 27.44
18	4388736		Drive Bar, Drum   (Replaces: 946192)				$ 96.97
19	946195		Nut, Bearing		Appelez-nous	-
20	4388736		Drum   (Replaces: 946193)				$ 96.97
21	946194		Baffle		Appelez-nous	-
22	2001034		Overlay, Cover		Appelez-nous	-
23	1112382		Front Cover		Appelez-nous	-
24	WP488787		Screw   (Replaces: 488886)				$ 11.26
25	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
28	1113140		Lens, Dispenser		Appelez-nous	-
29	WP548049		Light Bulb   (Replaces: 547225)				$ 90.67
