SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Refrigerator Liner


04 - Freezer Liner


05 - Ice Container


06 - Refrigerator Shelf


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser And Front


10 - Upper Unit


11 - Lower Unit And Tube


12 - Air Flow And Reservoir


13 - Icemaker, Lit/optional


14 - Top Grille And Unit Cover


15 - Freezer Shelf


16 - Refrigerator Control Panel


17 - Freezer Control

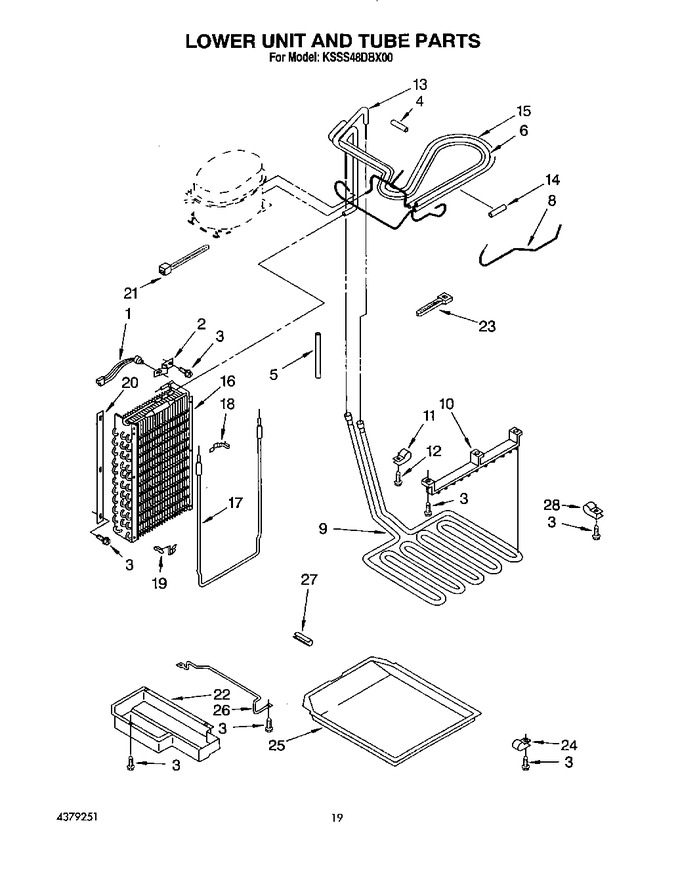

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4387499		Defrost Bi-metal   (Replaces: 2000528)				$ 114.21
2	1113043		Clamp, Bi-metal		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 13.25
4	2002186		Sleeve		Appelez-nous	-
5	2002171		Sleeve				$ 36.19
6	2002184		Condenser Inlet Tube		Appelez-nous	-
8	2002408		Tube, Connect (drier)		Appelez-nous	-
9	2000756		Heater, Drain Pan		Appelez-nous	-
10	1113062		Hanger, Heater		Appelez-nous	-
11	1113105		Bracket, Heater		Appelez-nous	-
12	WP488163		Screw   (Replaces: 487534)				$ 7.13
13	2002381		Tube, Discharge		Appelez-nous	-
14	2002187		Sleeve		Appelez-nous	-
15	2002403		Heat Exchanger		Appelez-nous	-
16	4388575		Evaporator   (Replaces: 2001133)				$ 364.00
17	WP2001608		Heater, Defrost   (Replaces: 2001608)				$ 167.45
18	1113048		Clamp, Heater (2)		Appelez-nous	-
19	1108431		Clamp, Heater (2)		Appelez-nous	-
20	1112844		Gasket, Evaporator		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 857547)				$ 7.47
22	1113070		Guard, Hook-up		Appelez-nous	-
23	851095		Strap (7)		Appelez-nous	-
24	488946		Clamp, Wiring				$ 19.32
25	WP2001264		Drain Pan   (Replaces: 2001264)				$ 249.46
26	1113206		Bracket, Drain Pan (left)		Appelez-nous	-
26	1113207		Bracket, Drain Pan (right)		Appelez-nous	-
27	WP2158826		Dampener   (Replaces: 513942)				$ 1.64
28	934011		Clip, Water Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
