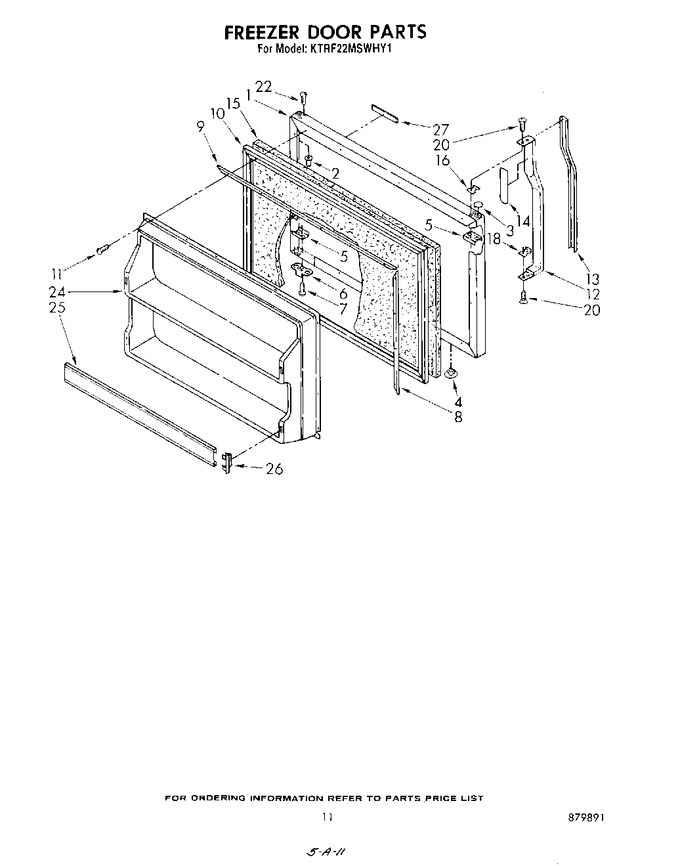

KTRF22MSTOY1 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	1101321	Freezer, Door Panel (platinum) (also Order Item 15)	Appelez-nous	-
1	944181	Freezer, Door Panel (white)	Appelez-nous	-
1	944185	Freezer, Door Panel (almond)	Appelez-nous	-
1	1101320	Freezer, Door Panel (toast)	Appelez-nous	-
2	509929	Cap, Hinge Sleeve	Appelez-nous	-
3	1100189	Hole Plug (platinum)	Appelez-nous	-
3	1100188	Hole Plug (toast)	Appelez-nous	-
3	989196	Hole Plug (almond)	Appelez-nous	-
3	WP2212648	Hole Plug (white) (Replaces: 844478)		Immediately	$ 7.37
4	1100197	Hole Plug (2) (platinum)	Appelez-nous	-
4	1100196	Hole Plug (2) (toast)	Appelez-nous	-
4	989197	Hole Plug (2) (almond)	Appelez-nous	-
4	534927	Hole Plug (2) (white)	Appelez-nous	-
5	943185	Tap Plate	Appelez-nous	-
6	944035	Bracket, Door Stop	Appelez-nous	-
7	488930	Screw (repair)	Appelez-nous	-
7	WP488921	Screw, 8 X 1/2 (Replaces: 488921)		Immediately	$ 7.42
8	981033	Retainer, Gasket Side	Appelez-nous	-
9	836118	Retainer, Gasket Top & Bottom	Appelez-nous	-
10	986705	Door Gasket, Magnetic	Appelez-nous	-
11	WP489069	Screw, 7 X 1/2 (Replaces: 489101)		Immediately	$ 7.56
11	WP681414	Screw, 10-12 X 3/8 (Replaces: 488552)		Immediately	$ 7.62
12	1107260	Handle Center	Appelez-nous	-
13	1107926	Insert Handle (black) (for Platinum Model)	Appelez-nous	-
13	1107231	Insert Handle	Appelez-nous	-
14	1107609	Spacer, Handle	Appelez-nous	-
15	876029	Foam Insulation (required When Replacing Exterior Door Panel)	Appelez-nous	-
16	1107628	Shim, Handle Top	Appelez-nous	-
18	1107192	Spacer Handle Door	Appelez-nous	-
20	WP488920	Screw, 8 X 5/8 (Replaces: 488920)			$ 7.18
20	488923	Screw (repair)	Appelez-nous	-
22	WP8281206	Screw, 8-15 X 1/2 (Replaces: 489028)			$ 7.53
24	1107266	Interior Door Panel Freezer Model Only)	Appelez-nous	-
25	1107366	Trim, Door Shelf	Appelez-nous	-
26	1107300	Retainer, Door Trim	Appelez-nous	-
27	1107915	Nameplate	Appelez-nous	-
