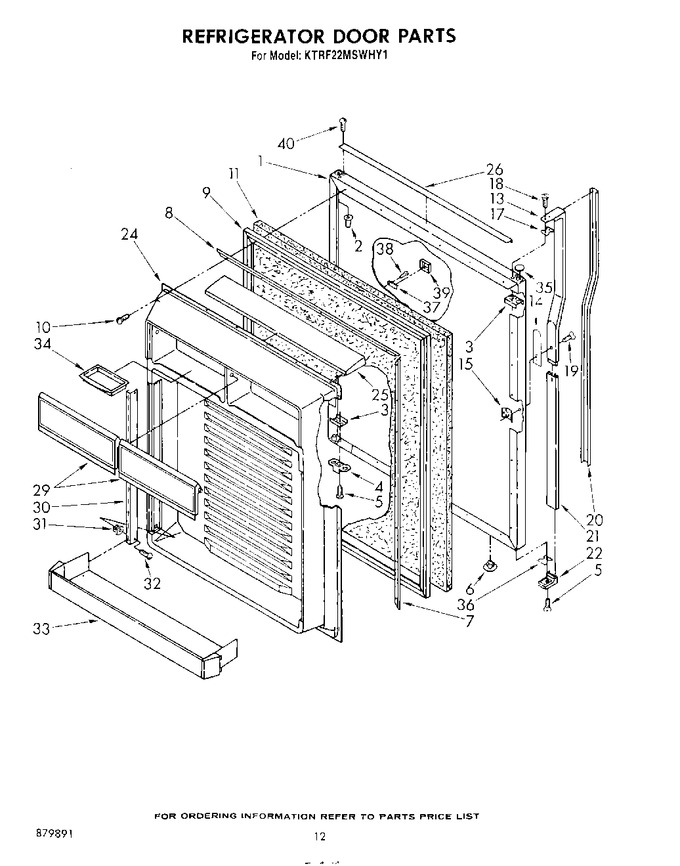

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944175		Refrigerator Door Panel (white)		Appelez-nous	-
1	1101319		Refrigerator Door Panel (platinum) (also Order Item 11)		Appelez-nous	-
1	1101318		Refrigerator Door Panel (toast)		Appelez-nous	-
1	944179		Refrigerator Door Panel (almond)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	943185		Tap Plate		Appelez-nous	-
4	1107202		Bracket, Door Stop		Appelez-nous	-
5	488930		Screw (repair)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	1100196		Hole Plug (2) (toast)		Appelez-nous	-
6	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
6	989197		Hole Plug (2) (almond)		Appelez-nous	-
6	534927		Hole Plug (2) (white)		Appelez-nous	-
7	981032		Retainer, Gasket Side		Appelez-nous	-
8	836118		Retainer, Gasket Top & Bottom		Appelez-nous	-
9	986704		Door, Gasket Magnetic		Appelez-nous	-
10	WP681414		Screw (repair) Cap   (Replaces: 488552)			Immediately	$ 7.62
10	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.56
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	1107230		Handle, Center		Appelez-nous	-
14	1107650		Shim, Center Handle		Appelez-nous	-
15	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
17	1107192		Spacer Handle Door		Appelez-nous	-
18	488923		Screw (repair)		Appelez-nous	-
18	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.18
19	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.25
20	1107232		Insert, Handle		Appelez-nous	-
20	1107928		Insert, Handle (black) (for Platinum Model)		Appelez-nous	-
21	1107210		Retainer, Insert		Appelez-nous	-
22	1107236		End Cap		Appelez-nous	-
24	1107455		Interior, Door Panel		Appelez-nous	-
25	849802		Door Dike		Appelez-nous	-
26	1107199		Trim Door (top)		Appelez-nous	-
29	1107275		Door, Utility		Appelez-nous	-
30	1107005		Shelf Ladder, Door		Appelez-nous	-
31	537095		Expansion Clip		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.45
33	1107308		Cantilever, Door Shelf		Appelez-nous	-
34	520747		Tray, Butter		Appelez-nous	-
35	1100189		Hole Plug (platinum)		Appelez-nous	-
35	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
35	989196		Hole Plug (almond)		Appelez-nous	-
35	1100188		Hole Plug (toast)		Appelez-nous	-
36	1107229		Shim, End Cap		Appelez-nous	-
37	1107329		Clip, Medallion		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
39	1107722		Handle Plug (almond)		Appelez-nous	-
39	1107720		Handle Plug (toast)		Appelez-nous	-
39	1107721		Handle Plug (platinum)		Appelez-nous	-
39	1107226		Handle Plug (white)		Appelez-nous	-
40	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
