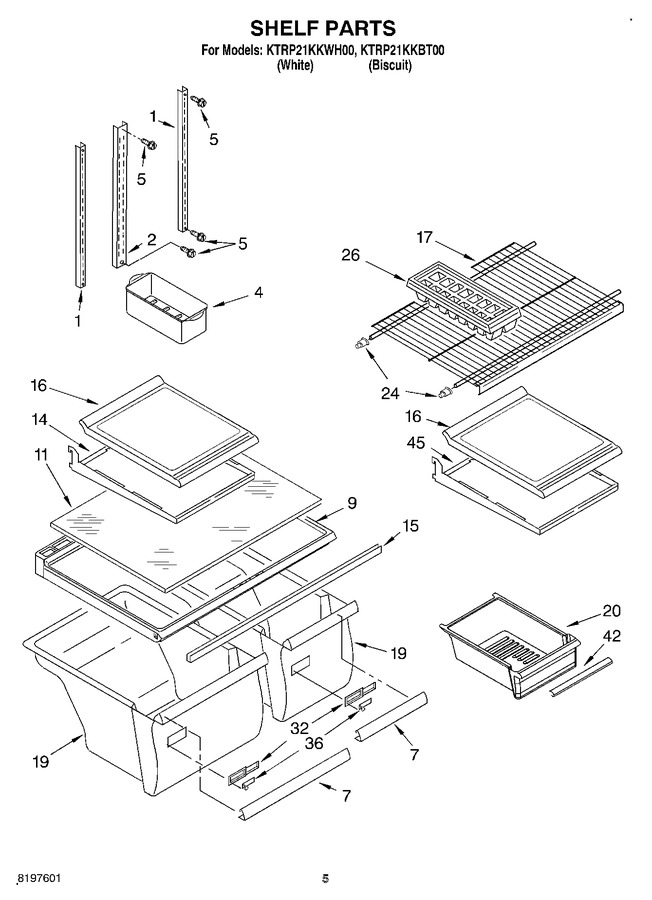

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2202821 | Shelf, Ladder Center |
|
- | |||||
| 4 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 19.54 | |||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 7 | WP2195341 | Trim, Pan (Replaces: 2195341) |
|
$ 86.67 | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2210528) |
|
$ 279.10 | |||||
| 11 | 2205377 | Glass, Crisper Cover Cover (front) (2) |
|
- | |||||
| 14 | 2174447 | Frame Assembly, Spillgaurd |
|
$ 79.10 | |||||
| 15 | WP2172748 | Crisper, Support (Replaces: 2163832) |
|
$ 102.08 | |||||
| 16 | WP999520 | Shelf Assembly, Spillguard (Replaces: 999530) |
|
$ 273.62 | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 19 | W10854037 | Pan, Crisper (Replaces: 2201027) |
|
Immediately | $ 179.19 | ||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2201032) |
|
Immediately | $ 171.43 | ||||
| 24 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 26 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 47.84 | ||||
| 32 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 36 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 42 | 2176357 | Window, Meat Pan |
|
$ 33.74 | |||||
| 45 | 2179717 | Frame Assembly, Meat |
|
- |
