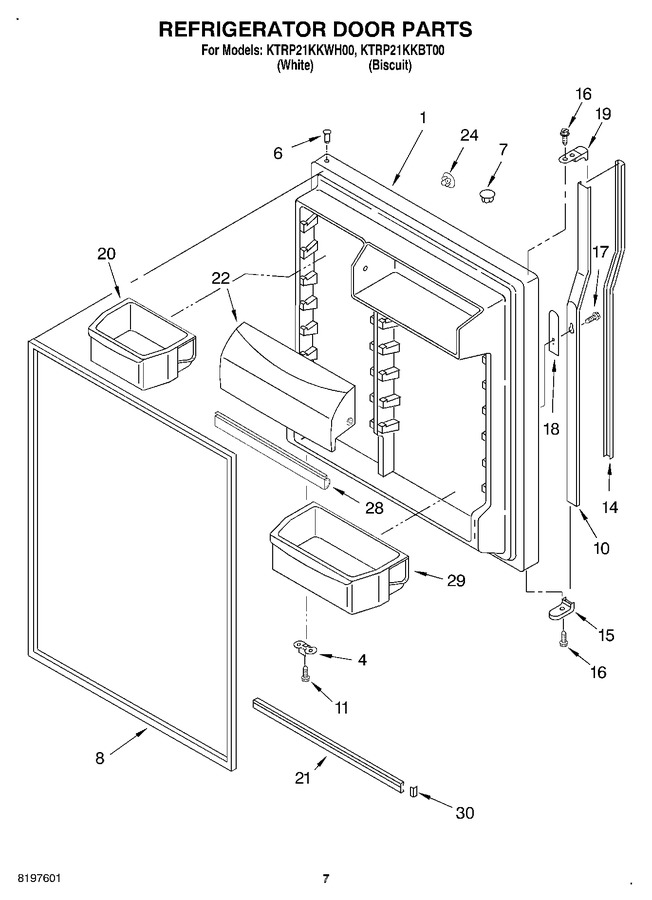

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183935		Refrigerator Door (includes No.8) (white)		Appelez-nous	-
1	2204687		Refrigerator Door (includes No.8) (biscuit)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.99
8	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
10	2188222T		Retainer, Insert (biscuit)		Appelez-nous	-
10	2188222W		Retainer, Insert (white)		Appelez-nous	-
11	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	2200932		Insert, Handle (biscuit)		Appelez-nous	-
14	2195986		Insert, Handle (white)		Appelez-nous	-
15	2195990		Endcap, Handle (white)				$ 9.50
15	2200930		Endcap, Handle (biscuit)		Appelez-nous	-
16	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
17	3400873		Screw, 8-18 X 9/16		Appelez-nous	-
18	2188146		Spacer, Handle		Appelez-nous	-
19	2195995T		Endcap (biscuit)		Appelez-nous	-
19	2195995W		Endcap (white)				$ 10.04
20	2171066		Bin, Door Shelf (2)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2195948)				$ 114.74
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
24	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.97
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171063		Bin, Door Shelf		Appelez-nous	-
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
