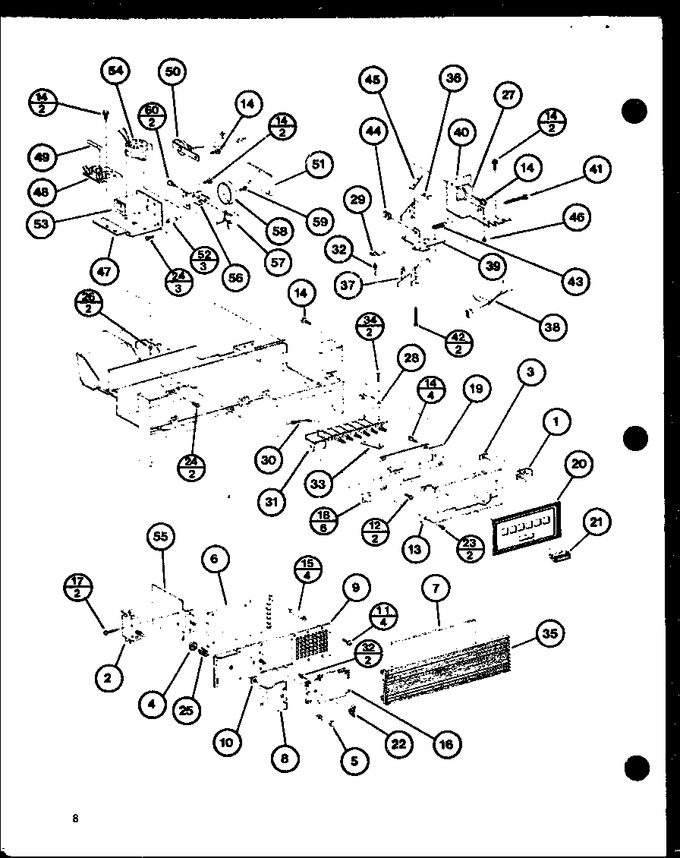

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5760402 | Bracket Escutch |
|
- | |||||
| 2 | C8715203 | Switch |
|
- | |||||
| 3 | M0287713 | Speed Nut |
|
- | |||||
| 4 | B8311801 | Clip-pin |
|
- | |||||
| 5 | B8312001 | Pin-spring Retainer |
|
- | |||||
| 6 | D7443803 | Timer |
|
- | |||||
| 7 | A3094904 | Filter |
|
- | |||||
| 8 | B8317301 | Retainer-grille |
|
- | |||||
| 9 | D7697201 | Panel - Air Inlet |
|
- | |||||
| 10 | M0118904 | Clip Push On |
|
- | |||||
| 11 | M0213815 | Screw |
|
- | |||||
| 12 | M0202501 | Screw |
|
- | |||||
| 13 | C8868702 | Escutcheon Timer A |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.59 | ||||
| 15 | M0580506 | Support P.c. Board |
|
- | |||||
| 16 | C8946401 | Timer Access Weld |
|
- | |||||
| 17 | M0227520 | Screw |
|
- | |||||
| 18 | B8323201 | Button, Timer |
|
- | |||||
| 19 | B8313502 | Plate Switch |
|
- | |||||
| 20 | B8332901 | Thin Plate |
|
- | |||||
| 21 | B5751901 | Light-indicator |
|
- | |||||
| 22 | M0287303 | Palnut |
|
- | |||||
| 23 | M0253217 | Screw |
|
- | |||||
| 24 | M0213815 | Screw |
|
- | |||||
| 25 | B8315601 | Spring-grille Ret |
|
- | |||||
| 26 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.74 | |||||
| 27 | M0104102 | Clip, Cord |
|
$ 8.10 | |||||
| 28 | B8301903 | Sw Limit Aux A |
|
- | |||||
| 29 | B8321802 | Clip |
|
- | |||||
| 30 | C8946301 | Harness Sw |
|
- | |||||
| 31 | C8941602 | Assy, Pb Switch K |
|
- | |||||
| 32 | A4539601 | Pop Rivet |
|
- | |||||
| 33 | M0289504 | Nut A |
|
- | |||||
| 34 | M0229008 | Screw A |
|
- | |||||
| 35 | C8853301 | Grille-air Inlet |
|
- | |||||
| 36 | C3670014 | Switch-interlock (limit) |
|
- | |||||
| 37 | B8324002 | Intlk Sw-weld |
|
- | |||||
| 38 | D7705901 | Harness Wire |
|
- | |||||
| 39 | C8875301 | Bracket |
|
- | |||||
| 40 | B8332501 | Bracket Interlock |
|
- | |||||
| 41 | M0211025 | Screw |
|
- | |||||
| 42 | M0213123 | Screw |
|
- | |||||
| 43 | A3277701 | Spring A |
|
- | |||||
| 44 | M0288010 | Speed Nut |
|
- | |||||
| 45 | M0289505 | Speednut |
|
- | |||||
| 46 | M1205109 | Rivet A-k |
|
- | |||||
| 47 | D7695901 | Plate Mtg |
|
- | |||||
| 48 | C8845904 | Terminal Board K |
|
- | |||||
| 49 | ABC20 | Fuse 20 Amp K (Replaces: M0805101) |
|
Immediately | $ 10.31 | ||||
| 50 | B5787001 | Buzzer |
|
- | |||||
| 51 | C8770601 | Buzzer Control |
|
- | |||||
| 52 | M0580505 | Support P.c. Board |
|
- | |||||
| 53 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.35 | |||||
| 54 | B5602812 | Motor |
|
- | |||||
| 55 | B8372401 | S W Brkt. Weld |
|
- |
