SELECT A DIAGRAM

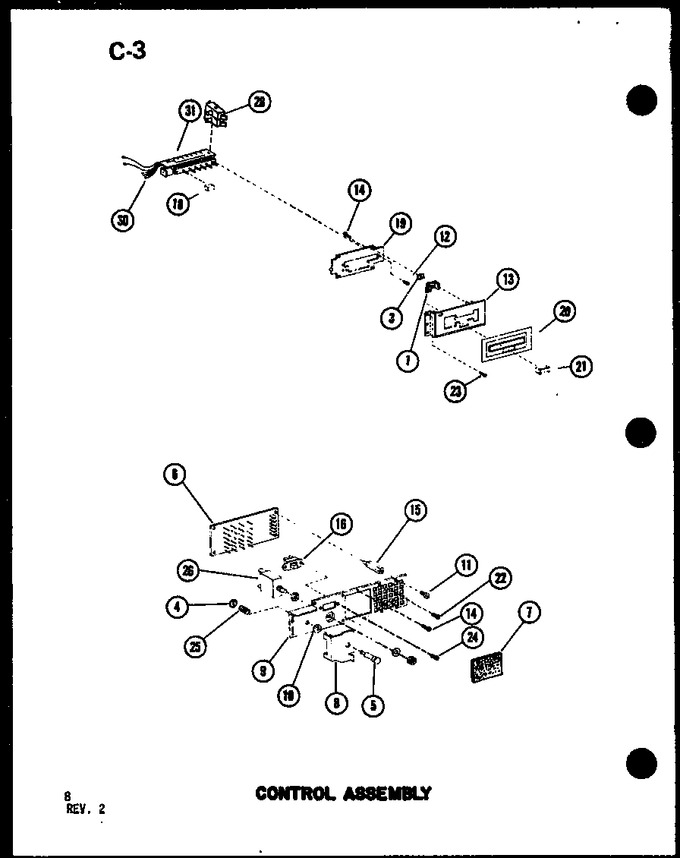

01 - Control Assy


02 - Page 1


03 - Page 3


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5760402		Bracket Escutch		Appelez-nous	-
3	M0287713		Speed Nut		Appelez-nous	-
4	B8311801		Clip-pin		Appelez-nous	-
5	B8312001		Pin-spring Retainer		Appelez-nous	-
6	D7443801		Timer, Electronic		Appelez-nous	-
7	B8315701		Screen, Air Inlet		Appelez-nous	-
8	B8317301		Retainer-grille		Appelez-nous	-
9	D7457801		Pnl-air Inlet		Appelez-nous	-
10	M0118904		Clip Push On		Appelez-nous	-
11	M0213815		Screw		Appelez-nous	-
12	M0202513		Screw A		Appelez-nous	-
13	C8868702		Escutcheon Timer A		Appelez-nous	-
14	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
15	M0580503		Support-pc Board		Appelez-nous	-
16	B8312101		Switch-slide		Appelez-nous	-
18	B8323201		Button, Timer		Appelez-nous	-
19	B8313502		Plate Switch		Appelez-nous	-
20	B8332901		Thin Plate		Appelez-nous	-
21	B5723501		Sight-indicator		Appelez-nous	-
22	M0213815		Screw		Appelez-nous	-
23	M0253217		Screw		Appelez-nous	-
24	M0202516		Screw A		Appelez-nous	-
25	B8315601		Spring-grille Ret		Appelez-nous	-
26	M0341302		Circuit Brkr		Appelez-nous	-
28	B8327101		Switch		Appelez-nous	-
30	C8873601		Harness Switch K		Appelez-nous	-
31	R0163042		Switch Assy Kit		Appelez-nous	-
	NOTE:		Rc-10-pb/p75085-7m The Rc-10b-pb/p75085-7m Will Have A Dark Brown Outer Case Component Instead Of Gray. The Outer Case Part Number Is C88151-5.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
