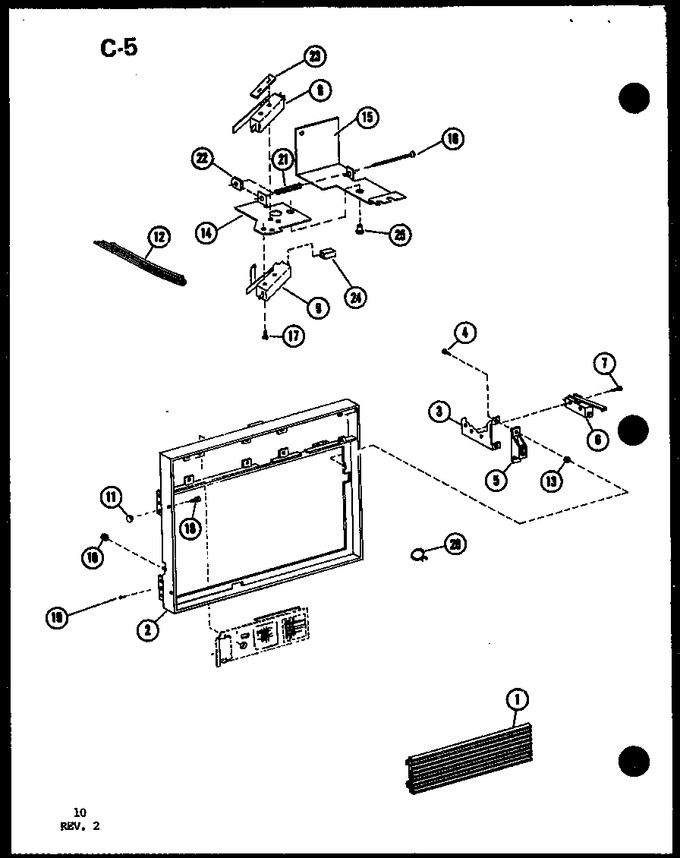

01 - Control Assy
02 - Page 1
03 - Page 3
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8853301 | Grille-air Inlet |
|
- | |||||
| 2 | D7293502 | Bezel-outer Case |
|
- | |||||
| 3 | B5675403 | Bracket-latch |
|
- | |||||
| 4 | M0216517 | Screw |
|
- | |||||
| 5 | C3680202 | Strike-latch |
|
- | |||||
| 6 | A3163414 | Switch-preform |
|
- | |||||
| 7 | M0227520 | Screw |
|
- | |||||
| 8 | C3670014 | Switch-interlock (limit) |
|
- | |||||
| 9 | B8324001 | Intlk Sw-weld |
|
- | |||||
| 10 | M0282901 | Nut, Self Thread |
|
- | |||||
| 11 | M0285902 | T Nut |
|
- | |||||
| 12 | A1020803 | Wiring Harness Assy |
|
- | |||||
| 13 | M0270524 | Washer |
|
- | |||||
| 14 | C8875301 | Bracket |
|
- | |||||
| 15 | B8332501 | Bracket Interlock |
|
- | |||||
| 16 | M0211025 | Screw |
|
- | |||||
| 17 | M0213123 | Screw |
|
- | |||||
| 18 | M0205442 | Screw, Nylock |
|
- | |||||
| 19 | M0253230 | Screw |
|
- | |||||
| 20 | M0321204 | Wire Tie |
|
- | |||||
| 21 | A3277701 | Spring A |
|
- | |||||
| 22 | M0288010 | Speed Nut |
|
- | |||||
| 23 | M0289505 | Speednut |
|
- | |||||
| 24 | M0325301 | Insulator, Term. K |
|
- | |||||
| 25 | M1205109 | Rivet A-k |
|
- |
