SELECT A DIAGRAM

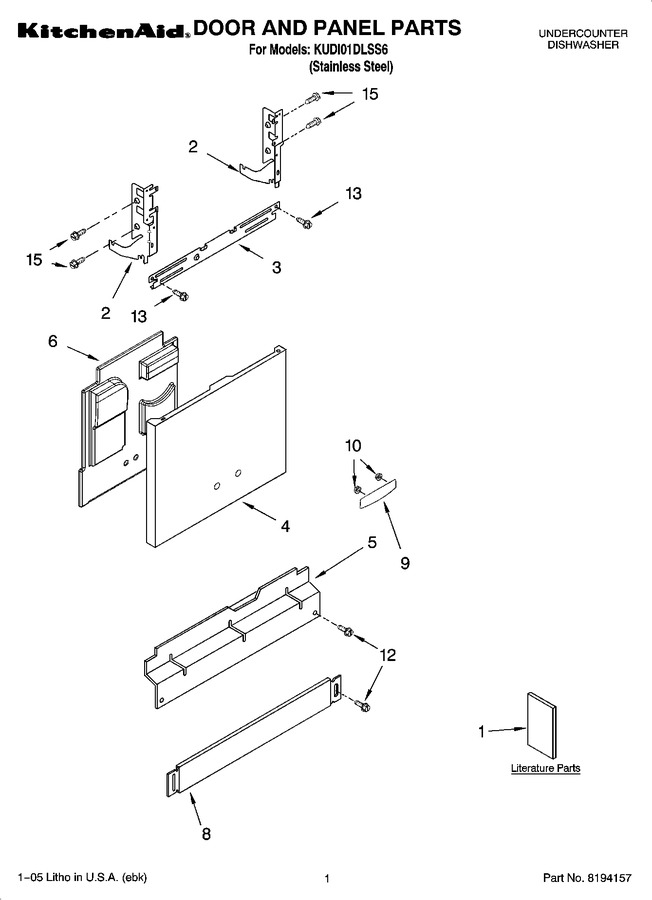

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8531822		Video, Use & Care (dvd)		Appelez-nous	-
1	8564554		Instructions, Installation		Appelez-nous	-
1	8572276		Energy Guide		Appelez-nous	-
1	8531778		Guide, Use & Care Tech Sheet		Appelez-nous	-
1	8564549		English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	8268983		Stiffener, Door				$ 38.77
4	8270088		Panel Front (includes Item 6) (stainless)		Appelez-nous	-
5	W11763736		Access Panel (black)   (Replaces: 8543834)			Immediately	$ 38.03
6	8531330		Brace, Foam		Appelez-nous	-
8	W10871196		Toe Panel (black)   (Replaces: 8268999)				$ 156.64
9	2005292		Nameplate (black)				$ 52.20
10	WP2004333		Nut   (Replaces: 2004333)				$ 10.12
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 7.36
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
15	WP3400071		Screw (2)   (Replaces: 3400071)			Immediately	$ 7.43

    View Diagram in Separate Window       Print Part List
