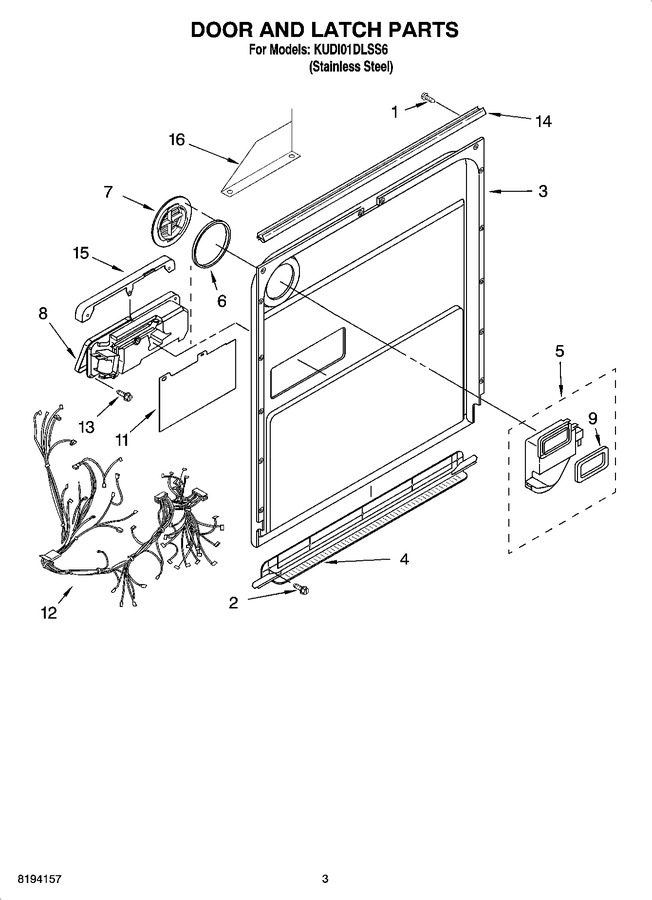

03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 7.38
2	W11631670		Screw   (Replaces: 8281217)				$ 13.25
3	8530900		Inner Door Mastic Assembly (also Order Item 6)		Appelez-nous	-
4	WP8268937		Inlet, Air   (Replaces: 8268937)			Immediately	$ 53.16
5	WP8545533		Vent Assembly (also Order Item 6)   (Replaces: 8545533)				$ 183.24
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 57.15
7	WP8545536		Deflector, Vent (also Order Item 6)   (Replaces: 8545536)				$ 74.96
8	WP8558129		Dispenser, Assembly   (Replaces: 8269996)			Immediately	$ 81.27
9	WP8269258		Seal. Front   (Replaces: 8269258)			Immediately	$ 87.17
11	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 101.84
12	8534931		Wiring Harness Main				$ 120.96
13	WPW10177098		Screw (6)   (Replaces: 8281154)			Immediately	$ 7.22
14	WP8535660		Seal,console/door   (Replaces: 8535660)				$ 167.41
15	WPW10462232		Bracket, Dispenser   (Replaces: 8269743)				$ 34.01
16	8531799		Shield, Solenoid				$ 33.64
