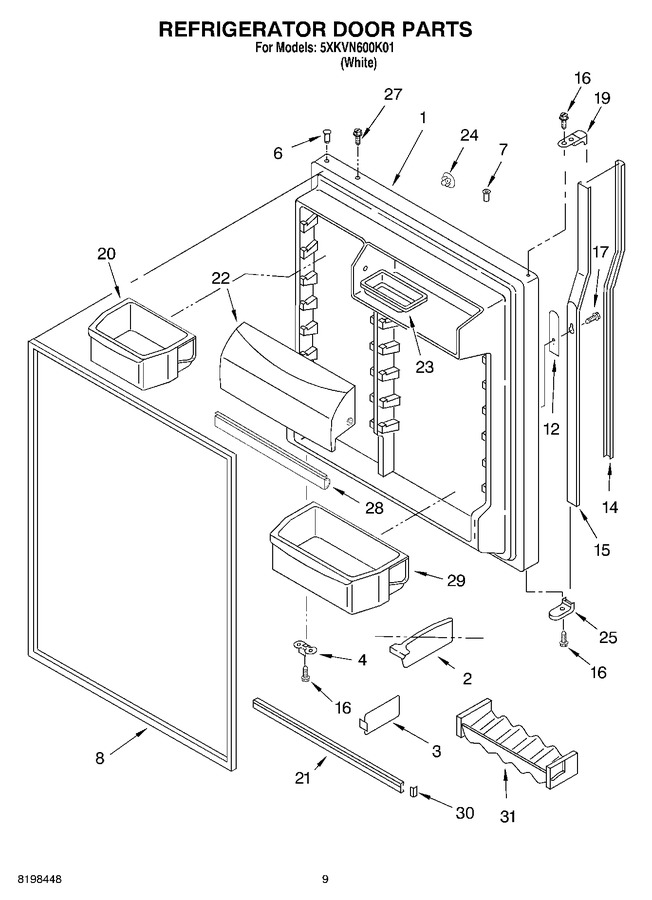

05 - Refrigerator Door Parts
06 - Freezer Door Parts, Literature And Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183935 | Refrigerator Door (includes 8) |
|
- | |||||
| 2 | 1123293 | Divider, Door Bin |
|
- | |||||
| 3 | 1123293 | Divider, Door Shelf |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 8 | 2159061 | Door Gasket, Magnetic (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 12 | 2188146 | Spacer, Door Handle |
|
- | |||||
| 14 | 2195986 | Insert, Handle |
|
- | |||||
| 15 | 2188222W | Retainer, Insert |
|
- | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 17 | 3400873 | Screw |
|
- | |||||
| 19 | 2195995W | Endcap, Top |
|
$ 10.04 | |||||
| 20 | 2171066 | Bin, Door Shelf (2) |
|
- | |||||
| 21 | WPW10421486 | Shelf, Trim (Replaces: 2195948) |
|
$ 114.74 | |||||
| 22 | 2218122 | Door, Compartment |
|
- | |||||
| 23 | 2165792 | Butter, Dish |
|
- | |||||
| 24 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 25 | 2195990 | Endcap, Bottom |
|
$ 9.50 | |||||
| 27 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 28 | 2159124 | Gasket, Door Compartment |
|
- | |||||
| 29 | 2171063 | Bin, Door Shelf |
|
- | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | 2193409 | Beverage Holder |
|
$ 48.13 |
