01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Unit Parts
05 - Refrigerator Door Parts

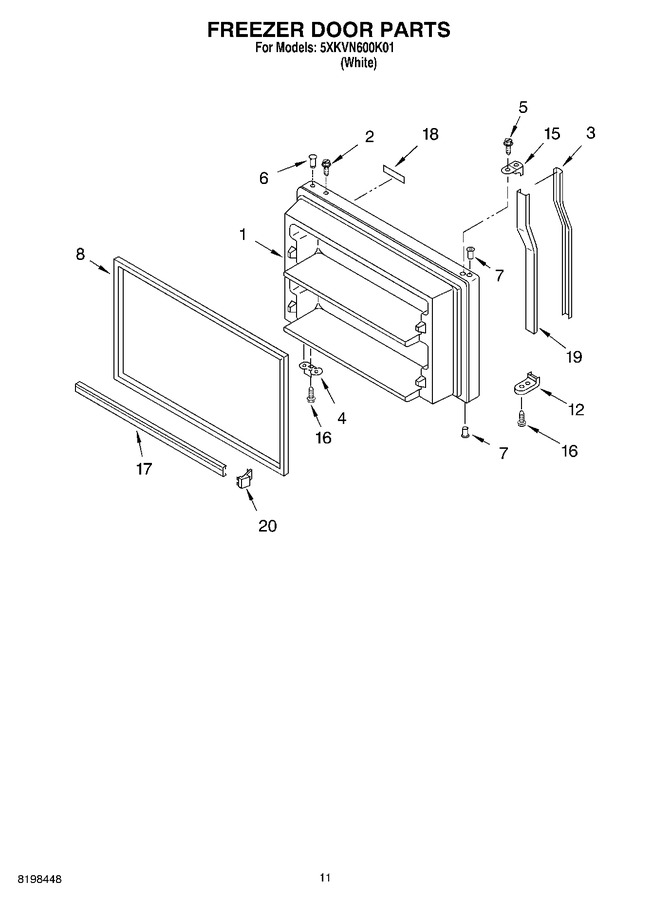

06 - Freezer Door Parts, Literature And Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Freezer Door (includes No. 8) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 3 | 2195984 | Insert, Handle |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 7 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (Replaces: 2214967) |
|
$ 302.41 | |||||
| 12 | 2195995W | Endcap, Bottom |
|
$ 10.04 | |||||
| 15 | 2195994W | Endcap, Top |
|
$ 17.06 | |||||
| 16 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 17 | 2195947 | Trim, Door Shelf (2) |
|
$ 50.94 | |||||
| 18 | 2195062 | Nameplate |
|
- | |||||
| 19 | 2195992W | Retainer, Insert |
|
- | |||||
| 20 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 218.83 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 84.73 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| 1129316 | Eckmf87 |
|
Immediately | $ 134.20 | |||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 218.83 |
