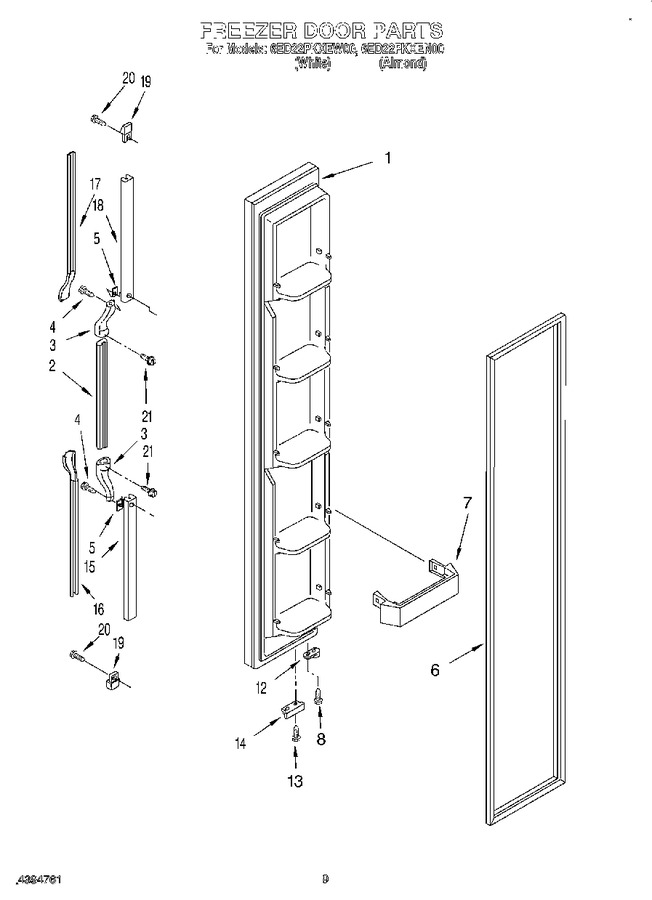

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194198N		Freezer Door (includes No.6) (almond)		Appelez-nous	-
1	2194198W		Freezer Door (includes No.6) (white)		Appelez-nous	-
2	2194767W		Handle, Center (white)		Appelez-nous	-
2	2194767N		Handle, Center (almond)		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 323.60
7	2156017		Trivet, Door Shelf (4)		Appelez-nous	-
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2195950		Bracket, Door Stop				$ 5.84
15	2194770		Retainer, Insert		Appelez-nous	-
16	2194773N		Insert, Handle (almond)		Appelez-nous	-
16	2194773W		Insert, Handle (white)		Appelez-nous	-
17	2194774W		Insert, Handle (white)		Appelez-nous	-
17	2194774N		Insert, Handle (almond)		Appelez-nous	-
18	2194771		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap (2)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	489022		Screw		Appelez-nous	-
