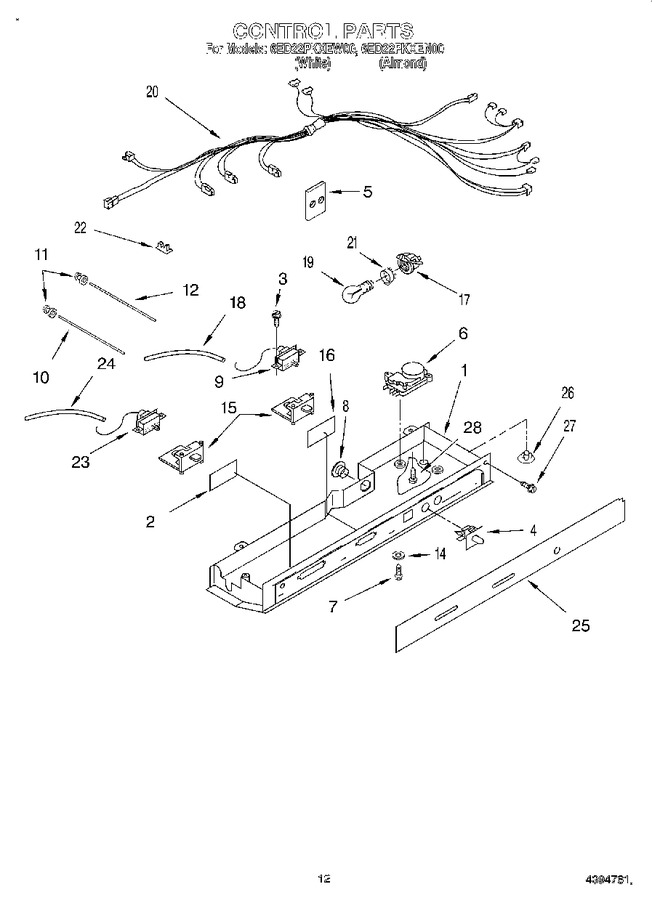

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box   (Replaces: 2161459)		Appelez-nous	-
2	2172940		Window		Appelez-nous	-
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 45.66
5	2172931		Heat Shield				$ 73.90
6	WP2166867		Defrost Timer   (Replaces: 2162057)				$ 187.73
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	940014		Hole Plug				$ 18.33
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 261.10
10	2179921		Light Bar (fc)		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2179920		Light Bar (rc)				$ 37.08
14	486632		Washer		Appelez-nous	-
15	2161466		Slide, Thermostat				$ 22.28
16	2172941		Window		Appelez-nous	-
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 8.35
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
20	2183733		Control Box Harness		Appelez-nous	-
21	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 86.74
22	1115375		Clip, Wiring				$ 11.15
23	WP2182770		Thermostat (fc)   (Replaces: 2182770)			Immediately	$ 237.62
24	WP2196003		Tube, Barrier Thermostat   (Replaces: 2196003)				$ 8.35
25	2175179		Escutcheon, Control Box		Appelez-nous	-
26	2166844		Hole Plug		Appelez-nous	-
27	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
28	WP488488		Screw   (Replaces: 489290)				$ 8.52
