Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12197201 Evaporator Appelez-nous -
13 12198301 Shroud, Evap. Fan Appelez-nous -
22 12333601 Assy, Ht Exch Appelez-nous -
23 10771701 Brkt, Evap. Fan Appelez-nous -
32 10428411 Heater, Evap Appelez-nous -
33 10771801 Brkt, Mtr/shroud Appelez-nous -
42 W11673433 Clip, Evap Heater   (Replaces: 10428101) Special Order $ 148.18

43 10654208 Motor, Evaporator Appelez-nous -
52 WP10442411 Thermostat, Defrost   (Replaces: 10442407) In-Stock Immediately $ 44.02

53 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

62 10629001 Block, Air Coil (right) Appelez-nous -
72 12067301 Block-l Evap Appelez-nous -
73 W10116797 Fan,evap   (Replaces: 10855402) In-Stock Immediately $ 8.56

83 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

391 M0238535 Screw, Sm Appelez-nous -
441 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

571 12198602 Up Evap Cover-e Ct Appelez-nous -
581 12198702 Lw Evap Cover-e Ct Appelez-nous -
611 12231701 Ladder-fz L/r Side Appelez-nous -
621 12233801 Gasket-fz Ladder Appelez-nous -
741 12198401 Cover-ctr Evap Appelez-nous -
751 12234801 Brkt-evap Cover Appelez-nous -
1331 C8983701 Thermistor Domestic Appelez-nous -
1341 12368901 Assy, Rocker Switch Appelez-nous -
1631 A3189372 Gasket Appelez-nous -
1641 10623003 Clip, Evaporator Appelez-nous -
1981 A3030361 Gasket Appelez-nous -
1991 A3030303 Gasket (per Foot) Appelez-nous -
2001 10527401 Clip, Evap Appelez-nous -
2711 A3030302 Gasket Appelez-nous -
2731 12234001 Grommet-vibration Appelez-nous -
2741 M0238859 Screw, Shoulder Appelez-nous -
2771 12223101 Brkt-r Evap Fan Appelez-nous -
2781 12223102 Brkt-l Evap Fan Appelez-nous -
3611 WP489399 Screw, Se   (Replaces: M0232929) Special Order $ 7.30

3941 12215101 Brkt-evap Clip Appelez-nous -
4031 A3189337 Gasket Appelez-nous -
4081 A3189348 Gasket, Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

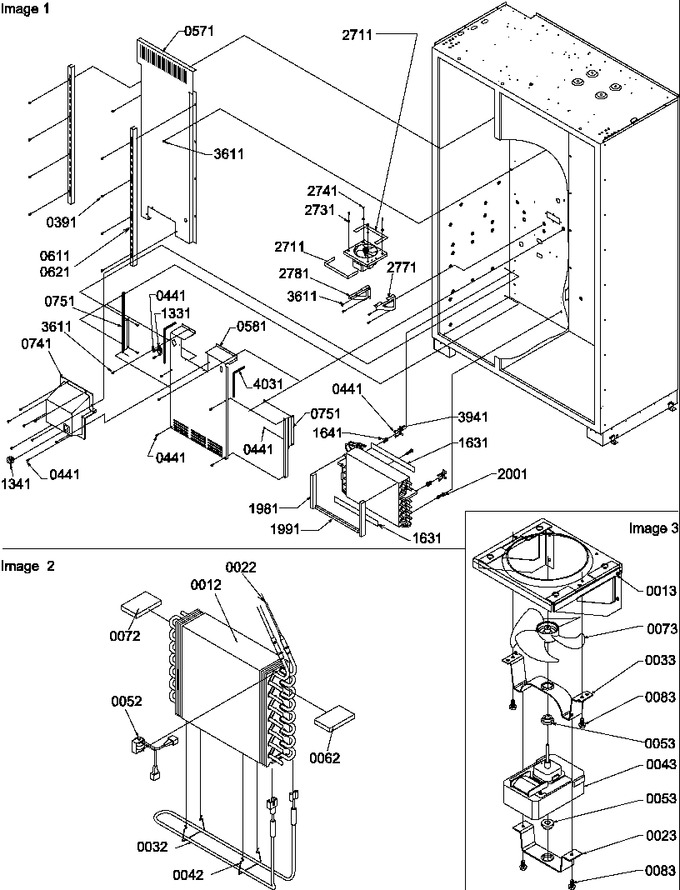

Diagram for S148CA01 (BOM: P1305502W)
