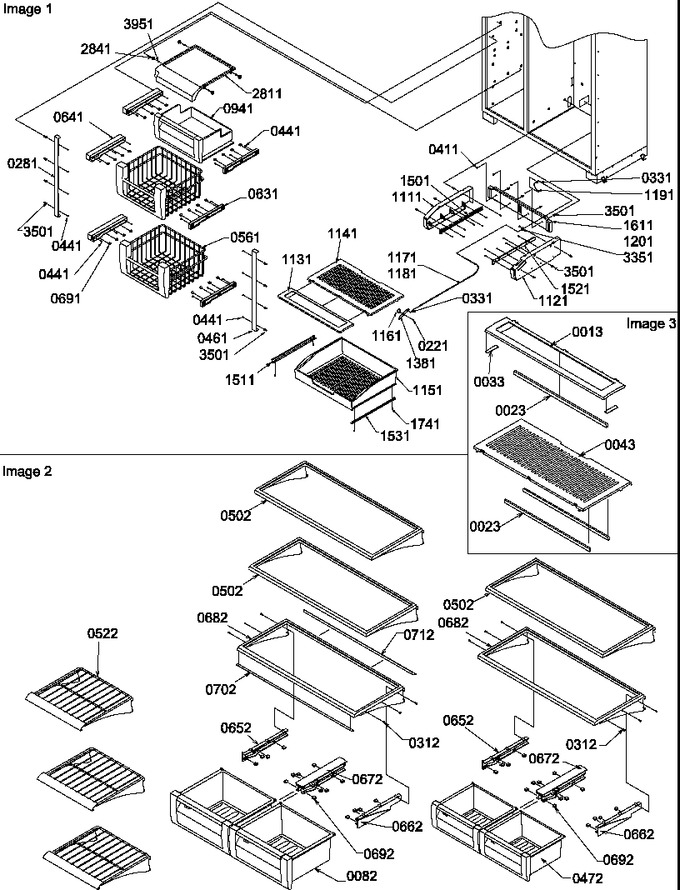

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 12073102 | Lid-deli Drawer |
|
- | |||||
| 23 | 12116902 | Clip-spring |
|
- | |||||
| 33 | 12113101 | Pad, Snugger |
|
- | |||||
| 43 | 12073202 | Assy, Deli Top |
|
- | |||||
| 82 | 12144301 | Assy, Crisper Pan |
|
- | |||||
| 221 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 281 | 12211201 | Closeout-fz Side |
|
- | |||||
| 312 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 331 | M0213105 | Screw-sm |
|
- | |||||
| 411 | M0213531 | Screw, Sm |
|
- | |||||
| 441 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 461 | 12304301 | Closeout, Frz Side |
|
- | |||||
| 472 | 12183901 | Assy, Dairy Drwr |
|
- | |||||
| 502 | 12144002 | Shelf-ref |
|
- | |||||
| 522 | 12201901 | Shelf, Frz (wire) |
|
- | |||||
| 561 | 12210901 | Assy, Frz Basket |
|
- | |||||
| 631 | 12336301 | Glide, R Frz |
|
- | |||||
| 641 | 12336201 | Glide, L Frz |
|
- | |||||
| 652 | 12064501 | Glide-l Crisper |
|
- | |||||
| 662 | 12064502 | Glide-r Crisper |
|
- | |||||
| 672 | 12064601 | Glide-ctr Crisper |
|
- | |||||
| 682 | 12144001 | Shelf-crisper |
|
- | |||||
| 691 | 12064701 | Pad, Glide |
|
- | |||||
| 692 | 12064701 | Pad, Glide |
|
- | |||||
| 702 | 12070002 | Seal-fr Crisper |
|
- | |||||
| 712 | 12070102 | Seal-rear Crisper |
|
- | |||||
| 941 | 12200501 | Assy, Ice Pan |
|
- | |||||
| 1111 | 12202601 | Support,drawer Left |
|
- | |||||
| 1121 | 12073002 | Support, R Drawer |
|
- | |||||
| 1131 | 12223202 | Assy, Deli Lid (sxs) |
|
- | |||||
| 1141 | 12223302 | Assy, Deli Top |
|
- | |||||
| 1151 | 12073302 | Drawer-deli |
|
- | |||||
| 1161 | 12073401 | Knob, Deli Control |
|
- | |||||
| 1171 | 12073501 | Tube-plastic |
|
- | |||||
| 1181 | 12073502 | Kit, Plastic Tube |
|
- | |||||
| 1191 | 12073601 | Slide-deli Control |
|
- | |||||
| 1201 | 12231201 | Cover, Air Control |
|
- | |||||
| 1381 | 12070501 | Glide-deli Knob |
|
- | |||||
| 1501 | 12073901 | Glide-l Support |
|
- | |||||
| 1511 | 12073902 | Glide-l Drawer |
|
- | |||||
| 1521 | 12073903 | Glide-r Support |
|
- | |||||
| 1531 | 12073904 | Glide-r Drawer |
|
- | |||||
| 1611 | 12196201 | Gskt-control Cover |
|
- | |||||
| 1741 | M0224128 | Screw |
|
- | |||||
| 2811 | 12211001 | Shelf-cover |
|
- | |||||
| 2841 | 12258501 | Support, Shelf |
|
- | |||||
| 3351 | M0102303 | Clamp |
|
- | |||||
| 3501 | M0581001 | Grommet, Screw |
|
- | |||||
| 3951 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 |
