| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 11 |
67006425 |
 |
Screw, Sm (Replaces: M0211019) |
|
|
Immediately |
$ 7.30 |
|
|
| 103 |
12034901 |
|
Lens, Frz. Light |
|
Appelez-nous
|
- |
|
|
|
| 104 |
12257801 |
|
Ladder-ref L Side |
|
Appelez-nous
|
- |
|
|
|
| 105 |
12257901 |
|
Ladder-ref R Side |
|
Appelez-nous
|
- |
|
|
|
| 108 |
12074501 |
|
Cover, Frz. Light |
|
Appelez-nous
|
- |
|
|
|
| 109 |
12184401 |
|
Cover-ref Light |
|
Appelez-nous
|
- |
|
|
|
| 110 |
12184501 |
|
Lens-ref Light |
|
Appelez-nous
|
- |
|
|
|
| 121 |
12118901 |
|
Track, Deli Drawer |
|
Appelez-nous
|
- |
|
|
|
| 122 |
12199901 |
|
Cover-water Tank |
|
Appelez-nous
|
- |
|
|
|
| 123 |
12074701 |
|
Insul-mc Cvr |
|
Appelez-nous
|
- |
|
|
|
| 124 |
12233803 |
|
Gasket-ref Ladder |
|
Appelez-nous
|
- |
|
|
|
| 126 |
12184901 |
|
Insul-back Mc Cover |
|
Appelez-nous
|
- |
|
|
|
| 128 |
12074601 |
|
Insul-l Mc Cvr |
|
Appelez-nous
|
- |
|
|
|
| 129 |
12074704 |
|
Insul-m C Cover |
|
Appelez-nous
|
- |
|
|
|
| 130 |
12074702 |
|
Insul-r Mc Cvr |
|
Appelez-nous
|
- |
|
|
|
| 132 |
Y00000000 |
|
See Note See Note Motor-ref Fan -- (see Part Illustration) |
|
Appelez-nous
|
- |
|
|
|
| 133 |
C8983701 |
|
Thermistor Domestic |
|
Appelez-nous
|
- |
|
|
|
| 142 |
12213401 |
|
Weld, Mc Cover |
|
Appelez-nous
|
- |
|
|
|
| 166 |
D7714407 |
|
Socket-light |
|
Appelez-nous
|
- |
|
|
|
| 167 |
D7753503 |
|
Plate-light Socket |
|
Appelez-nous
|
- |
|
|
|
| 168 |
40A15 |
 |
Bulb, Light (40 Watt) (Replaces: A0282803) |
|
|
Immediately |
$ 1.98 |
|
|
| 169 |
D7786603 |
|
Shield, Light |
|
Appelez-nous
|
- |
|
|
|
| 170 |
B5733302 |
|
Clip, Ground |
|
Appelez-nous
|
- |
|
|
|
| 173 |
WP489399 |
 |
Screw (Replaces: M0232903) |
|
|
|
$ 7.30 |
|
|
| 192 |
10281601 |
|
Socket-light |
|
Appelez-nous
|
- |
|
|
|
| 193 |
10270203 |
|
Housing, Light |
|
Appelez-nous
|
- |
|
|
|
| 194 |
Y10270101 |
|
Cover-light |
|
Appelez-nous
|
- |
|
|
|
| 195 |
M0580007 |
|
Grommet, Screw |
|
Appelez-nous
|
- |
|
|
|
| 218 |
12091201 |
|
Frame-breaker |
|
Appelez-nous
|
- |
|
|
|
| 240 |
A3189368 |
|
Gasket, Foam |
|
Appelez-nous
|
- |
|
|
|
| 245 |
12265101 |
|
Support, Track |
|
Appelez-nous
|
- |
|
|
|
| 246 |
12265201 |
|
Tank, Coiled Water |
|
Appelez-nous
|
- |
|
|
|
| 247 |
12272401 |
|
Floor, False |
|
Appelez-nous
|
- |
|
|
|
| 248 |
12265302 |
|
Insul, Wax Tank |
|
Appelez-nous
|
- |
|
|
|
| 272 |
M0238846 |
|
Screw-sm |
|
Appelez-nous
|
- |
|
|
|
| 300 |
12118601 |
|
Extrsn, Cabinet R. |
|
Appelez-nous
|
- |
|
|
|
| 301 |
12118602 |
|
Extrsn, Cabinet L. |
|
Appelez-nous
|
- |
|
|
|
| 314 |
12135401 |
|
Shim, Cab Trim |
|
Appelez-nous
|
- |
|
|
|
| 315 |
A4539601 |
|
Pop Rivet |
|
Appelez-nous
|
- |
|
|
|
| 350 |
M0581001 |
|
Grommet, Screw |
|
Appelez-nous
|
- |
|
|
|
| 352 |
M0108201 |
|
Clip, `s` |
|
Appelez-nous
|
- |
|
|
|
| 361 |
M0221913 |
|
Screw, Sm |
|
Appelez-nous
|
- |
|
|
|
| 383 |
M0288306 |
|
Nut-speed Clip |
|
Appelez-nous
|
- |
|
|
|
| 384 |
M0217225 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 391 |
M0238535 |
|
Screw, Sm |
|
Appelez-nous
|
- |
|
|
|
| 395 |
WP489474 |
 |
Screw 1`` (Replaces: M0211021) |
|
|
Immediately |
$ 8.55 |
|
|
| 407 |
M0218136 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 422 |
8169479 |
 |
Screw (Replaces: M0215318) |
|
|
|
$ 7.30 |
|
|
| 441 |
67006425 |
|
Screw, Sm (Replaces: M0238616) |
|
|
Immediately |
$ 7.30 |
|
|
| 442 |
67006425 |
|
Screw, Sm (Replaces: M0238616) |
|
|
Immediately |
$ 7.30 |
|
|
| 500 |
12102501 |
|
Retainer, Harness |
|
Appelez-nous
|
- |
|
|
|
| 513 |
12404701 |
|
Plate, Fan Mount |
|
Appelez-nous
|
- |
|
|
|
| 731 |
12203701 |
|
Cover-fan |
|
Appelez-nous
|
- |
|
|
|
| 932 |
12074801 |
|
Switch-power |
|
Appelez-nous
|
- |
|
|
|
| 962 |
12055701 |
|
Brkt-fz Light |
|
Appelez-nous
|
- |
|
|
|
| 972 |
12184301 |
|
Brkt-ref Light |
|
Appelez-nous
|
- |
|
|
|
| 982 |
12096901 |
|
Socket-light |
|
Appelez-nous
|
- |
|
|
|
| 992 |
WPA3073101 |
 |
Bulb 120v. 40w. (Replaces: A3079001) |
|
|
Immediately |
$ 12.72 |
|
|
| 997 |
12197701 |
|
Brkt-sm Ff Fan |
|
Appelez-nous
|
- |
|
|
|
| 998 |
12197601 |
|
Brkt-lg Ff Fan |
|
Appelez-nous
|
- |
|
|
|
| NI |
WP489474 |
|
Screw 1`` (Replaces: M0211021) |
|
|
Immediately |
$ 8.55 |
|
|

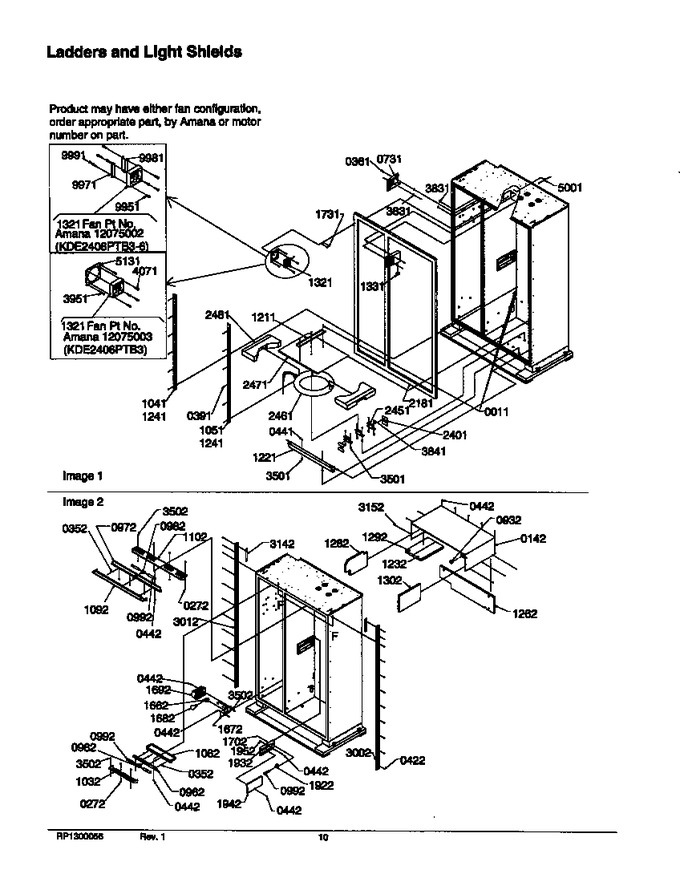

View Diagram in Separate Window
