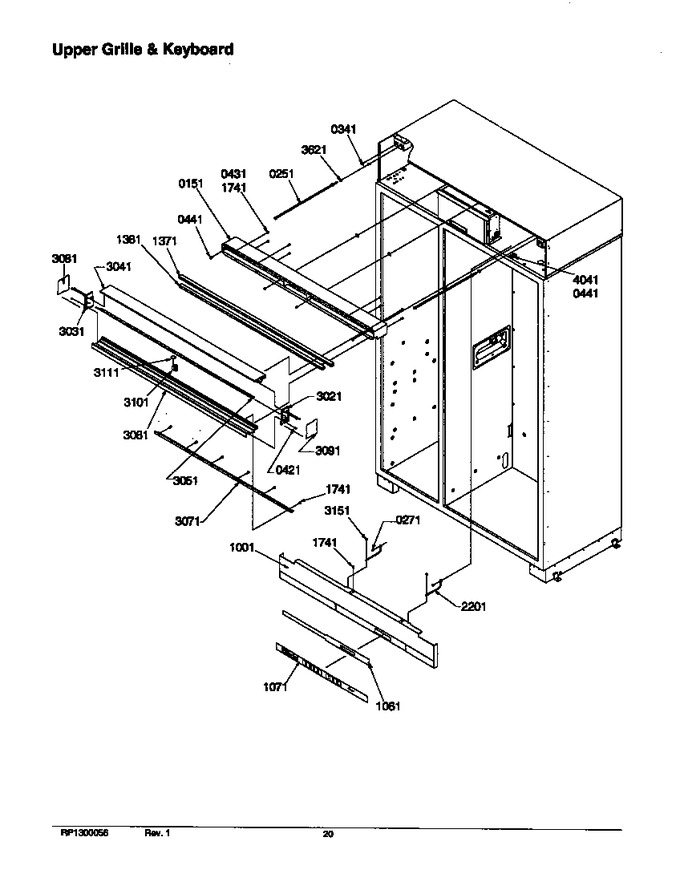

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	12210301		Cover-cont Panel		Appelez-nous	-
106	12235201		Switch, Keyboard		Appelez-nous	-
107	12201601		Overlay-keyboard		Appelez-nous	-
151	10942508		Weld,air Duct-e Ct		Appelez-nous	-
174	M0224128		Screw		Appelez-nous	-
220	12064001		Support, Cont Pnl		Appelez-nous	-
251	M0223603		Screw- Lag		Appelez-nous	-
271	M0238846		Screw-sm		Appelez-nous	-
302	12173401		End Cap, R Grille		Appelez-nous	-
303	12173402		End Cap, L Grille		Appelez-nous	-
304	12127702		Extrsn, Up Grille		Appelez-nous	-
305	12127802		Extrsn, Ctr Grille		Appelez-nous	-
306	12173303		Extrns, Lw Grille		Appelez-nous	-
308	12119801		Cover, End Cap (left)		Appelez-nous	-
309	12119802		Cover, End Cap (right)		Appelez-nous	-
310	12201201		Supt-air Grille		Appelez-nous	-
311	A3189371		Gasket-foam		Appelez-nous	-
315	A4539601		Pop Rivet		Appelez-nous	-
341	M0288120		Speed Nut		Appelez-nous	-
362	M0270510		Washer		Appelez-nous	-
404	12414701		Brkt, Cont Cover		Appelez-nous	-
421	8169479		Screw   (Replaces: M0215318)				$ 7.30
431	M0238921		Screw, Sm		Appelez-nous	-
441	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
