SELECT A DIAGRAM

01 - Cabinet Back


02 - Crushed Ice Bucket Parts


03 - Deli Drawer & Ladders


04 - Drain System & Rollers


05 - Evap & Air Handling Parts


06 - Fz Door


07 - Fz Door


08 - Fz Shelving & Ref Lights


09 - Ice & Water Cavity Assy


10 - Ice & Water Cavity Parts

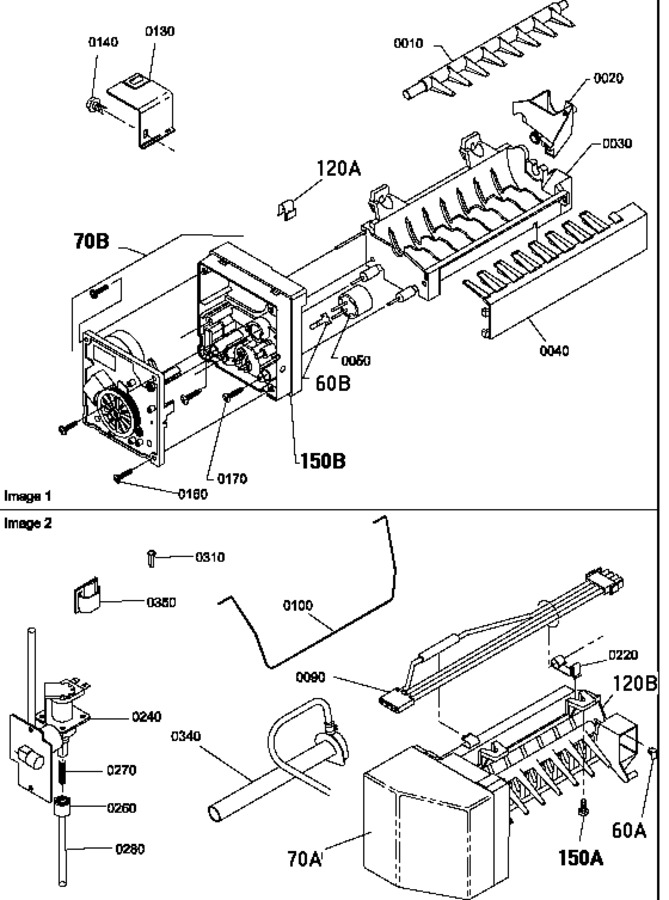

11 - Ice Maker Parts


12 - Machine Compartment


13 - Ref Door


14 - Ref Door


15 - Ref Shelving & Drawers


16 - Ref/fz Controls & Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10063207		Dike, I & W		Appelez-nous	-
2	12053601		Harness Frz Dr		Appelez-nous	-
3	B0523563		Insulation Ft. K		Appelez-nous	-
4	B0523562		Insul. By The Ft.		Appelez-nous	-
5	M0272803		Lock Washer		Appelez-nous	-
6	WP489399		Screw, Se   (Replaces: M0232929)				$ 7.30
7	10063208		Dike, I & W		Appelez-nous	-
8	10525507		Shelf, Frz Dr		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	10602505		Trim, Frz Door (bottom)		Appelez-nous	-
10	10602508		Trim, Frz Dr Bot (stnl)		Appelez-nous	-
10	10602506		Trim, Frz Dr Bot W		Appelez-nous	-
11	10534707		Shelf, Half Frz		Appelez-nous	-
12	10237602		Retainer, Package		Appelez-nous	-
13	10359702		Gasket (w Frz Dr)		Appelez-nous	-
14	10860801		Liner, Frz Dr I/w		Appelez-nous	-
15	D7828601		Retainer, Door Liner		Appelez-nous	-
16	M0219730		Screw				$ 7.65
17	12016901		Insul, Batt (ref. Door)		Appelez-nous	-
18	12016902		Insul, Batt (ref. Door)		Appelez-nous	-
19	C8972405		Stop-w Door		Appelez-nous	-
19	C8972403		Stop, Door (blk)		Appelez-nous	-
19	C8972404		Stop, Satin Door		Appelez-nous	-
20	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
21	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
22	10063102		Clip, Door Dike		Appelez-nous	-
23	10494604		Support, Fz Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
