Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 696545 Air Duct Assembly Appelez-nous -
3 WPW10139210 Screw, 8-18 X 5/16   (Replaces: 3390646) Special Order $ 7.23

4 WP3398128 Thermostat, Internal Bias   (Replaces: 3398128) In-Stock Immediately $ 125.36

5 WP3399849 Fuse, Thermal   (Replaces: 3399849) In-Stock Immediately $ 32.42

6 WP339956 Seal   (Replaces: 339956) In-Stock Immediately $ 8.15

7 WP696426 Wheel, Blower   (Replaces: 696426) In-Stock Immediately $ 123.02

8 WP694419 Buzzer, Mini   (Replaces: 694419) Special Order $ 120.65

9 WP489463 Screw, 8-18 X 5/8   (Replaces: 489463) Special Order $ 7.43

10 696419 Scroll, Fan Special Order $ 129.29

11 279848 Bulkhead   (Replaces: 695931) Special Order $ 328.30

12 279771 Clip   (Replaces: 3398161) Special Order $ 13.55

13 WP3401380 Box, Heater   (Replaces: 3401380) In-Stock Immediately $ 265.73

14 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.62

15 W10491983 Cap, Screw   (Replaces: 359702) Appelez-nous -
16 345396 Clip   (Replaces: 9830393) Appelez-nous -
17 WP3404154 Thermostat, 200~f (93.3~)   (Replaces: 3404154) In-Stock Immediately $ 122.99

18 WP348197 Washer, Support   (Replaces: 348197) Special Order $ 6.80

20 WP94614 Terminal (female)   (Replaces: 94614) Special Order $ 7.25

22 WP279843 Element, Heater   (Replaces: 3403586) In-Stock Immediately $ 220.14

23 279457 Terminal Wire Kit (for Heater Element Wiring Harness Repair) In-Stock Immediately $ 7.13

24 3936144 Connector (3-circuit) Special Order $ 19.10

25 3397269 Connector, Timer Special Order $ 25.55

26 345325 Gusset (2) Appelez-nous -
27 WP3359452 Nut, 3/8-16   (Replaces: 3359452) In-Stock Immediately $ 6.80

28 3391834 Drum Assembly   (Replaces: 695943) Special Order $ 335.26

29 279735 Seal, Rear   (Replaces: 345648) In-Stock Immediately $ 98.79

30 697777 Screw, 11-16 X 7/8 Appelez-nous -
31 00685207 Baffle, Drum (3)   (Replaces: 685207) Special Order $ 293.40

32 WP3394508 Bearing, Ring   (Replaces: 3394508) Special Order $ 118.67

33 3395683 Housing Connector In-Stock Immediately $ 49.01

34 WPW10512946 Ring, Tri   (Replaces: 690997) In-Stock Immediately $ 8.71

35 349241T Roller, Support   (Replaces: 3397588) In-Stock Immediately $ 26.58

36 WPW10359270 Shaft, L.h.   (Replaces: 3399506) In-Stock Immediately $ 65.44

37 WPW10359269 Shaft, R.h.   (Replaces: 3399507) In-Stock Immediately $ 51.09

38 WP90767 Screw, 8-18 X 3/8   (Replaces: 90767) In-Stock Immediately $ 7.43

39 279872 Resistor Assembly   (Replaces: 3401077) Special Order $ 70.82

41 W10828351 Screen, Lint   (Replaces: 348399) In-Stock Immediately $ 62.64

43 W10828351 Cover, Lint Screen   (Replaces: 685273) In-Stock Immediately $ 62.64

44 WP3390631 Screw, 10-16 X 1/4   (Replaces: 342202) Special Order $ 7.43

46 9830394 Seal Appelez-nous -
48 3406937 Harness, Wiring Appelez-nous -
50 WP3388703 Washer-support   (Replaces: 3388703) Special Order $ 7.07

55 W11233063 Shield, Exhaust   (Replaces: 696302) Special Order $ 21.06

LIT9830492 Instructions, Installation Appelez-nous -
978883 Almond (uncut) Appelez-nous -
350956 Paint, Spray 13 Oz. (almond) Special Order $ 48.61

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 36.11

350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.93

LIT9831749 Label, Wiring Diagram Appelez-nous -
LIT9830513 Label, Operating Instructions Appelez-nous -
LIT9831699 Guide, Use & Care Appelez-nous -
72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07


    View Diagram in Separate Window     Print Icon   Print Part List

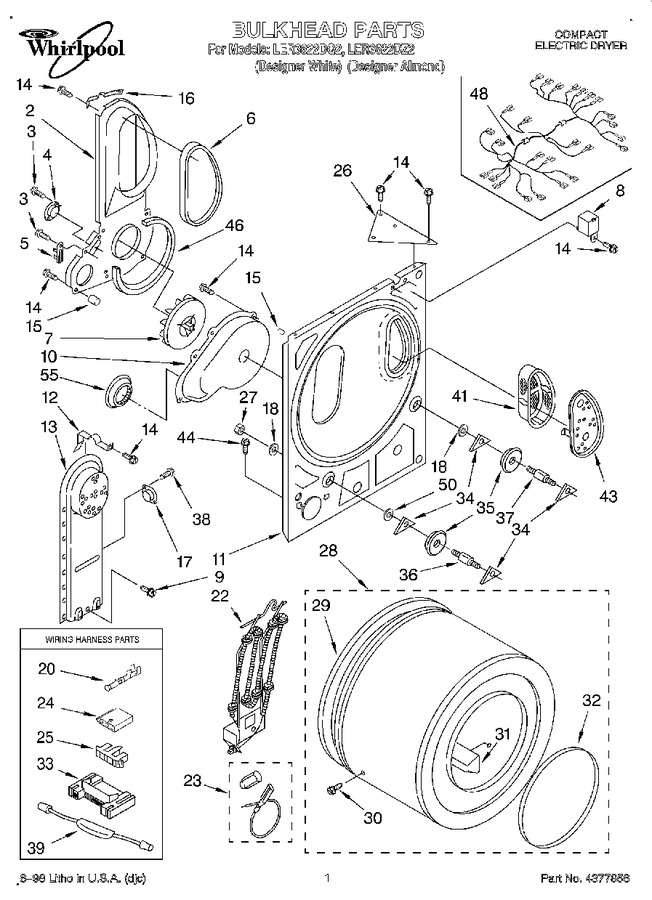

Diagram for LER3622DZ2
