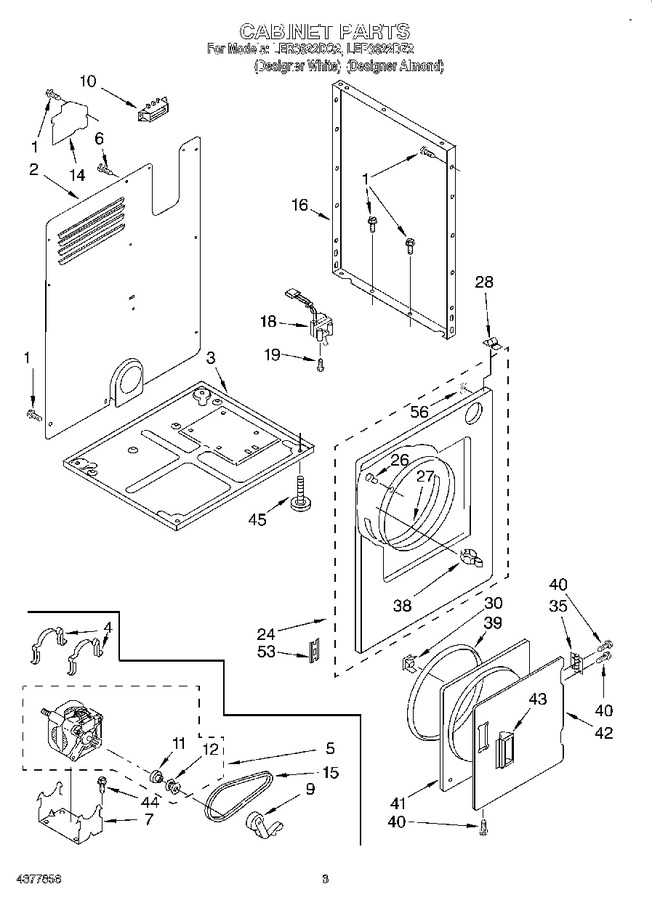

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 2 | 280050 | Panel, Rear (Replaces: 695201) |
|
- | |||||
| 3 | WP348726 | Base Assembly (Replaces: 348726) |
|
$ 262.94 | |||||
| 4 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.40 | |||||
| 5 | 279827 | Motor, 60 Hz. (Replaces: 3398046) |
|
Immediately | $ 195.48 | ||||
| 6 | W10850756 | Screw, Ground (10-32 X 5/8) (Replaces: 697776) |
|
$ 7.38 | |||||
| 7 | 696541 | Base, Motor |
|
$ 88.07 | |||||
| 9 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 10 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 11 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 12 | 8066051 | Pulley, Motor 60 Hz. (Replaces: 3396426) |
|
$ 106.90 | |||||
| 14 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 15 | 3394652 | Belt, Drive |
|
Immediately | $ 47.09 | ||||
| 16 | 348705 | Panel, Side (2) (white) |
|
$ 115.02 | |||||
| 16 | 689445 | Panel, Side (2) (almond) |
|
- | |||||
| 18 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 33.21 | ||||
| 19 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 24 | 280044 | Front Panel (white) (Replaces: 693943) |
|
$ 301.64 | |||||
| 24 | 693944 | Front Panel (almond) |
|
- | |||||
| 26 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 27 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 76.91 | ||||
| 28 | WP345670 | Lock, Top (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 30 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
Immediately | $ 6.56 | ||||
| 35 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.39 | |||||
| 38 | 279570 | Strike, Panel (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 39 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 50.68 | |||||
| 40 | WP694091 | Screw, 8-18 X 3/8 (Replaces: 694091) |
|
$ 6.80 | |||||
| 41 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 186.71 | |||||
| 42 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 139.28 | ||||
| 42 | 689314 | Door, Front (almond) |
|
- | |||||
| 43 | 689308 | Handle, Door (almond) |
|
$ 5.70 | |||||
| 43 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 7.52 | ||||
| 44 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.43 | |||||
| 45 | WP233550 | Foot (4) (Replaces: 233550) |
|
$ 7.52 | |||||
| 53 | W10854425 | Clip (2) (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 56 | WP98234 | Clip, Panel (2) (Replaces: 98234) |
|
Immediately | $ 10.76 |
