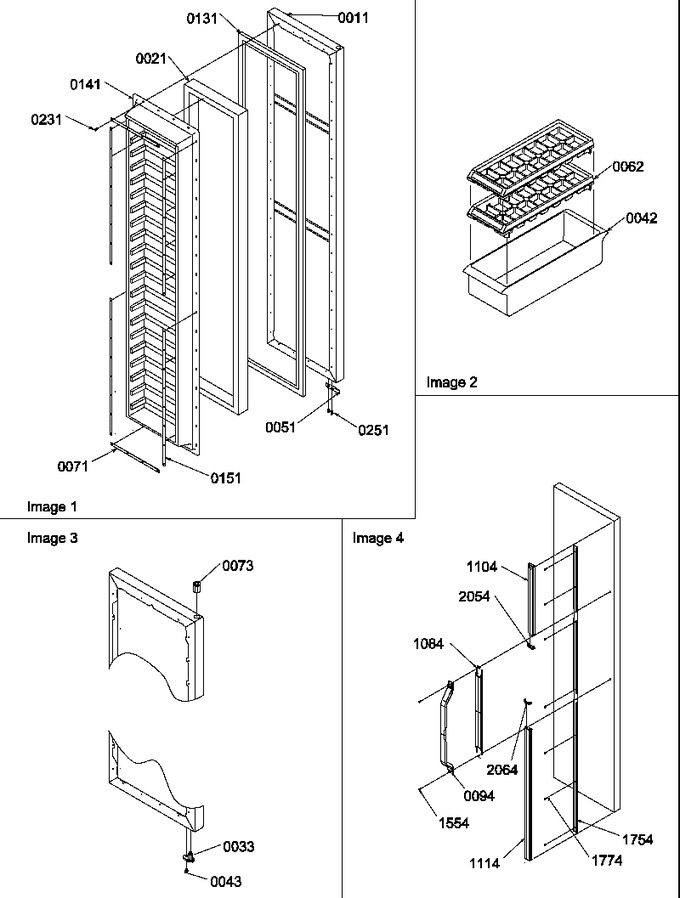

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10547304L		Ass`y, Fz Dr (alm)		Appelez-nous	-
21	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 218.83
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 6.80
42	10423128		Bin-utility		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
51	C8972403		Stop, Door (blk)		Appelez-nous	-
62	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 43.06
71	C8982801		Retainer, Door Liner		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
94	12139303		Handle, Door (black)		Appelez-nous	-
131	10359702		Gasket (w Frz Dr)		Appelez-nous	-
141	10522001		Liner, Frz Door (conv.)		Appelez-nous	-
151	D7828601		Retainer, Door Liner		Appelez-nous	-
231	M0219730		Screw				$ 7.65
251	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
1084	10810403		Trim- E Ctr Dr		Appelez-nous	-
1104	10810311		Trim-e Top Fz Dr		Appelez-nous	-
1114	10810511		Trim, Bottom Door Ebony		Appelez-nous	-
1554	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.52
1754	10852213		Retainer-fz Trim		Appelez-nous	-
1774	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
2054	10953115		Insert, Trim (black)		Appelez-nous	-
2064	10953116		Insert, Trim (black)		Appelez-nous	-
