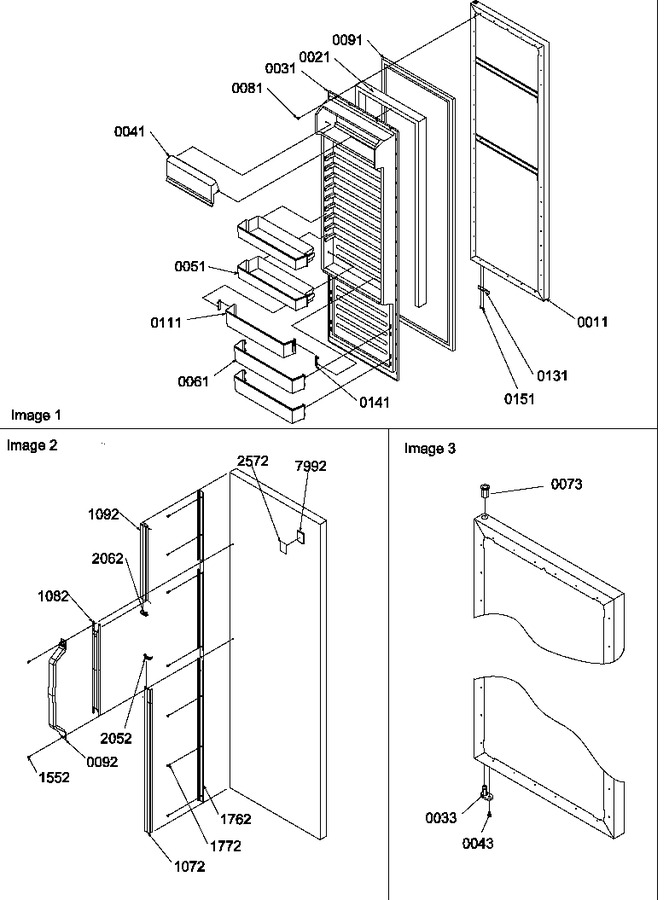

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10580904L		Ass`y, Ref Dr (alm)		Appelez-nous	-
21	B0523563		Insulation Ft. K		Appelez-nous	-
31	10579901		Liner, Refr Door		Appelez-nous	-
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 6.80
41	10581004		Door, Dairy		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
51	10580004		Bucket-ref Door		Appelez-nous	-
61	10580104		Shelf, Ref Door		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
81	M0219730		Screw				$ 7.65
91	10359705		Gasket, Door (w Ref)		Appelez-nous	-
92	12139303		Handle, Door (black)		Appelez-nous	-
111	10580302		Shelf-gallon		Appelez-nous	-
131	C8972403		Stop, Door (blk)		Appelez-nous	-
141	10202001		Clip, Retainer		Appelez-nous	-
151	WP98165		Screw, Sm   (Replaces: M0211018)				$ 7.71
1072	10810512		Trim, Bottom Door E		Appelez-nous	-
1082	10810403		Trim- E Ctr Dr		Appelez-nous	-
1092	10810312		Trim-e Top Ref Dr		Appelez-nous	-
1552	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 9.52
1762	10852214		Retainer-ref Trim		Appelez-nous	-
1772	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.59
2052	10953115		Insert, Trim (black)		Appelez-nous	-
2062	10953116		Insert, Trim (black)		Appelez-nous	-
2572	10992102		Insert- L Nameplate		Appelez-nous	-
7992	10992002		Base, Nameplate		Appelez-nous	-
