Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12570603 Shelf, Up Fz Appelez-nous -
2 12570403 Basket, Upr Fz Appelez-nous -
3 C8973801 Support, Frz Shelf Special Order $ 8.35

4 12570503 Shelf, Lw Fz Appelez-nous -
5 12314101 Trim, Basket/shelf Appelez-nous -
6 12015101 Rail, Shelf (lt) Appelez-nous -
7 12314101 Trim, Basket/shelf Appelez-nous -
8 12570303 Basket, Lw Fz Appelez-nous -
9 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

10 10972801 Rail, Shelf (rt) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

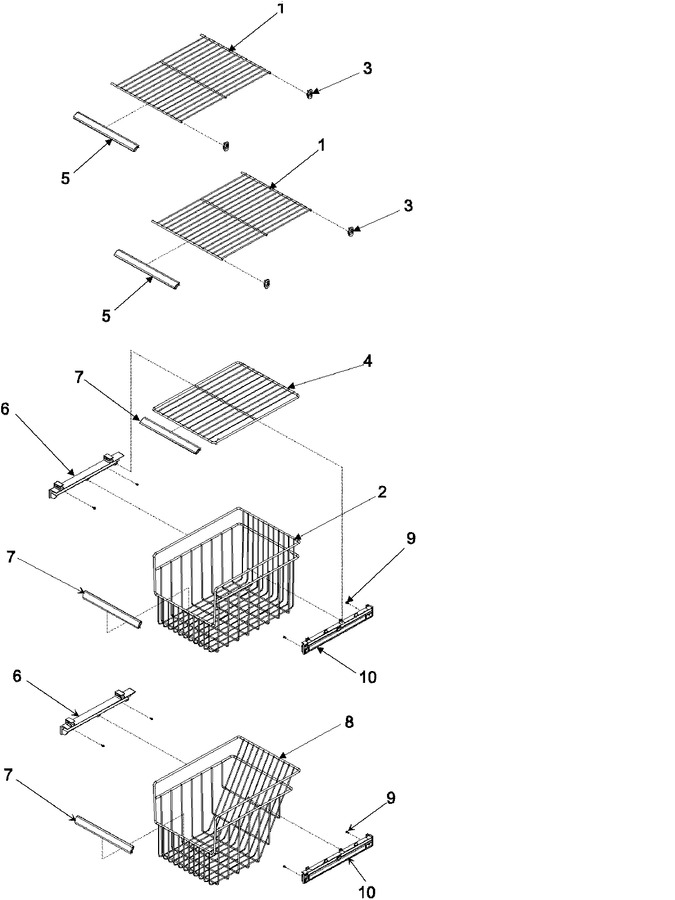

Diagram for SK525-2W (BOM: PSK525200W0)
