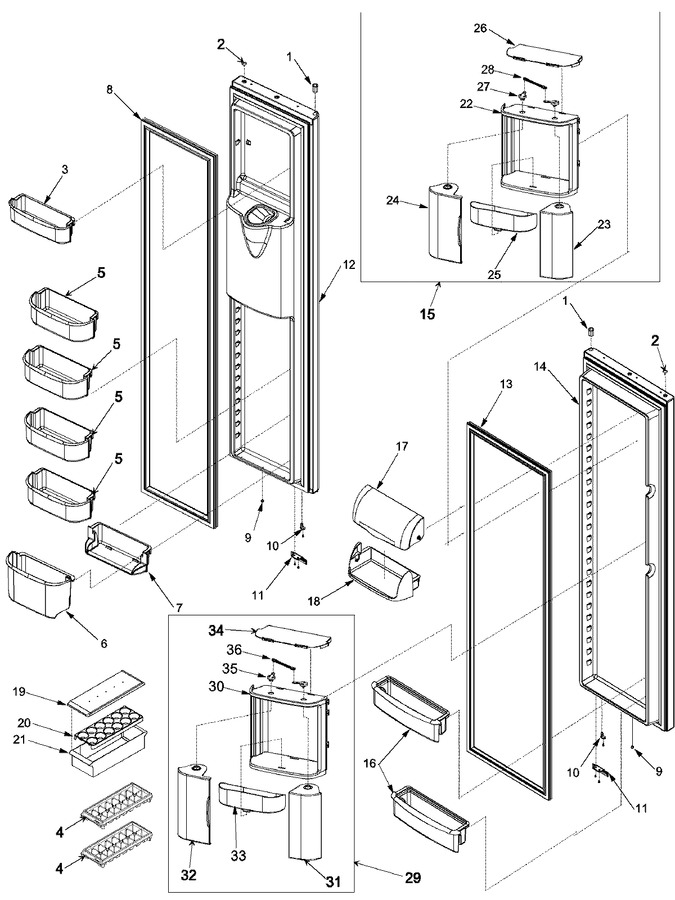

SK525-2W (BOM: PSK525200W0) | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	10961001	Bushing, Door (wht)	Appelez-nous	-
2	M0311604	Plug, Button (blk)	Appelez-nous	-
3	12664901	Bucket-conv Fz Dr	Appelez-nous	-
4	WP841180A	Tray, Ice (Replaces: 67001205)		Immediately	$ 47.84
5	12557501	Bucket, Lwr Fz Dr			$ 17.64
6	12569302	Bucket, Fz Tilt Xxx	Appelez-nous	-
7	12569401	Frame, Tilt Bucket	Appelez-nous	-
8	12591502W	Gasket, Fz Dr (wht)	Appelez-nous	-
9	A3080001	Plug, Button (blk)	Appelez-nous	-
10	WP8281227	Screw, Tc (Replaces: M0220432)			$ 10.96
10	R0181181	Closure, Door (wht) (Replaces: 12113202)		Immediately	$ 7.55
11	WP98165	Screw, Sm (Replaces: M0211018)			$ 8.57
11	12636401W	Stop, Door (wht)	Appelez-nous	-
12	67002207	Fz Dr Foam Assy(wht)	Appelez-nous	-
13	12591501W	Gasket, Ref Dr (wht)	Appelez-nous	-
14	67002205	Ref Dr Foam Assy(wht)	Appelez-nous	-
15	67003321	Lrg Chiller Assy	Appelez-nous	-
16	67002204	Bucket, 22 Ref	Appelez-nous	-
17	67001325	Door, Dairy	Appelez-nous	-
18	67002304	Tray, Dairy	Appelez-nous	-
19	10436404	Lid, Utility			$ 60.85
20	10436506	Tray, Egg			$ 8.28
21	10423131	Bin, Utility			$ 31.13
22	67002294	Frame, Large Chiller	Appelez-nous	-
23	67002297	Door, Large Chiller (rt)	Appelez-nous	-
24	67003136	Door, Large Chiller (lt)	Appelez-nous	-
25	67002296	Tray, Chiller			$ 26.66
26	67002291	Cover, Chiller	Appelez-nous	-
27	67002293	Linkage, Chiller			$ 11.76
28	67002292	Linkage, Ctr Chiller	Appelez-nous	-
29	67003322	Mini Chiller Assy	Appelez-nous	-
30	67002409	Frame, Mini Chiller	Appelez-nous	-
31	67002411	Door, Mini Chiller (rt)	Appelez-nous	-
32	67003137	Door, Lh Mini Chiller	Appelez-nous	-
33	67002296	Tray, Chiller			$ 26.66
34	67002291	Cover, Chiller	Appelez-nous	-
35	67002293	Linkage, Chiller			$ 11.76
36	67002292	Linkage, Ctr Chiller	Appelez-nous	-
