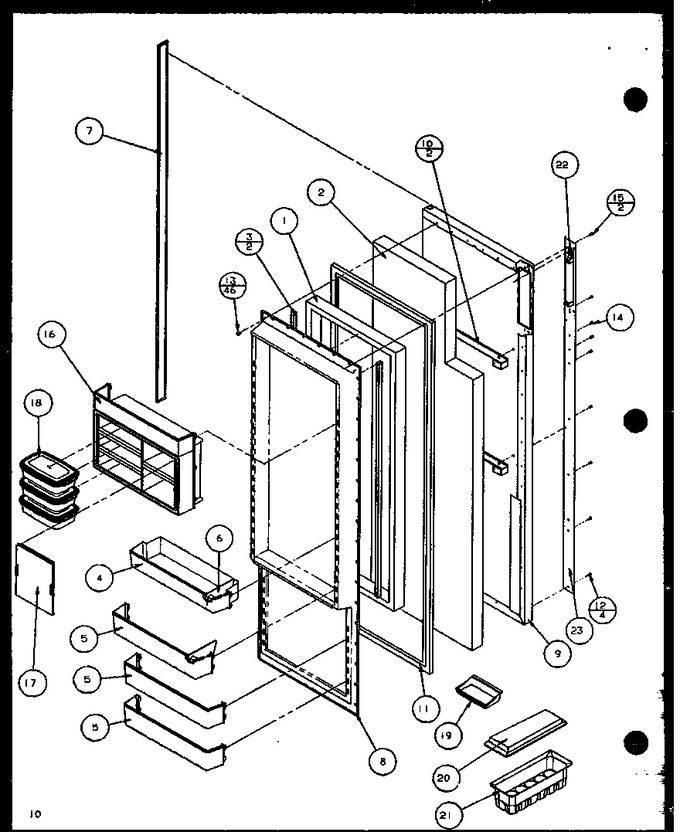

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	B0566725		Insulation, Batt		Appelez-nous	-
3	C8987104		Seal, Door Dike		Appelez-nous	-
4	D7783301		Bucket, Ref Door		Appelez-nous	-
5	67003697		Shelf, Ref Door   (Replaces: D7783401)				$ 73.87
6	D7814602		Snugger		Appelez-nous	-
7	C8974102		Trim, Door		Appelez-nous	-
8	D7828703		Xinner Door Liner Ref		Appelez-nous	-
9	D7834004		Pan, Ref Door, Almond		Appelez-nous	-
9	D7834002		Door Ref		Appelez-nous	-
9	D7834003		Door Ref		Appelez-nous	-
10	D7837402		Support, Handle		Appelez-nous	-
11	10104401		Gasket, Door (w Ref)		Appelez-nous	-
12	M0213815		Screw		Appelez-nous	-
13	M0219717		Screw		Appelez-nous	-
14	M0233329		Screw,sm		Appelez-nous	-
15	M0237515		Screw		Appelez-nous	-
16	D7781203		Dairy Module		Appelez-nous	-
17	D7781305		Door Dairy		Appelez-nous	-
18	D7806404		Container Sec. Ser.		Appelez-nous	-
19	D3799802		Butter Tray		Appelez-nous	-
20	D7805902		Cover, Egg Bucket		Appelez-nous	-
21	D7695605		Egg Bucket V		Appelez-nous	-
22	B5733302		Clip, Ground		Appelez-nous	-
23	D7832402		Trim		Appelez-nous	-
