Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3012532 Tubing Plastic Appelez-nous -
2 B8389001 Shim, Top Hinge Appelez-nous -
4 C8976001 Insulator, Hinge Cover Appelez-nous -
5 C8987901 Foil, Hinge Cover Appelez-nous -
6 D7757803 Top Hinge Assy Appelez-nous -
7 D7789504 Hinge Cover Appelez-nous -
8 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 13.25

9 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 6.80

10 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 9.52

11 B5612028 Insulation Batt Appelez-nous -
12 B5629046 Insulation Appelez-nous -
13 B5629047 Insulation Appelez-nous -
15 B8388801 Clip Appelez-nous -
16 B8390401 Gasket Trim Appelez-nous -
17 B8390501 Gasket Retainer K Appelez-nous -
18 B8390701 Assy, Hinge Pin Appelez-nous -
19 B8392301 Bracket, Gasket Appelez-nous -
20 C8964202 Tube, Protective Appelez-nous -
21 C8964203 Tube, Protective Appelez-nous -
22 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 7.38

23 C8972402 Stop, Door Appelez-nous -
24 D7790801 Nut, Door Stop Appelez-nous -
25 D7832901 Cover, Pc Board Appelez-nous -
26 10024501 Board - Low Volt Pc Appelez-nous -
27 D7833201 Closure, Door (white) Appelez-nous -
28 D7833501 Bracket Trim Appelez-nous -
29 D7838401 Closure, Door (white) Appelez-nous -
30 10030301 Harness, Ref Door Appelez-nous -
31 M0219717 Screw Appelez-nous -
32 M0230727 Screw Appelez-nous -
33 M0217204 Screw Appelez-nous -
34 M0273001 Assy, Hinge Pin Appelez-nous -
35 M0335408 Connector Appelez-nous -
36 B8386702 Kit,btm Hinge Shim Appelez-nous -
36 B8386703 Kit,btm Hinge Shim Appelez-nous -
36 B8386701 Kit,btm Hinge Shim Appelez-nous -
37 D7834209 Upper Trim Assembly, White Appelez-nous -
37 D7834210 Uppr Trim Assy G Q Appelez-nous -
37 D7834211 Assy, L Up Trim Appelez-nous -
38 D7833101 Bottom Hinge Assembly Appelez-nous -
39 M0246258 Screw Appelez-nous -
40 M0203931 Screw, Tf Appelez-nous -
41 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.59

42 D7853803 Trim Center Ref Appelez-nous -
42 D7853805 Trim Center Ref Dr Appelez-nous -
42 D7853804 Trim Center Frz Gold Appelez-nous -
43 D7792803 Trim Lwr Ref Door Appelez-nous -
43 D7792804 Trim Lwr Ref Door Appelez-nous -
44 D7863002 Pad, Handle Inner (wht) Appelez-nous -
44 D7863004 Pad, Handle Inner (alm) Appelez-nous -
45 D7826603 Handle Appelez-nous -
46 D7863103 Outer Pad K Appelez-nous -
46 D7863104 Pad, Handle Outer (alm) Appelez-nous -
46 D7863102 Pad, Handle Outer (wht) Appelez-nous -
47 WP3400094 Screw   (Replaces: M0253942) Special Order $ 8.33

48 M0215115 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

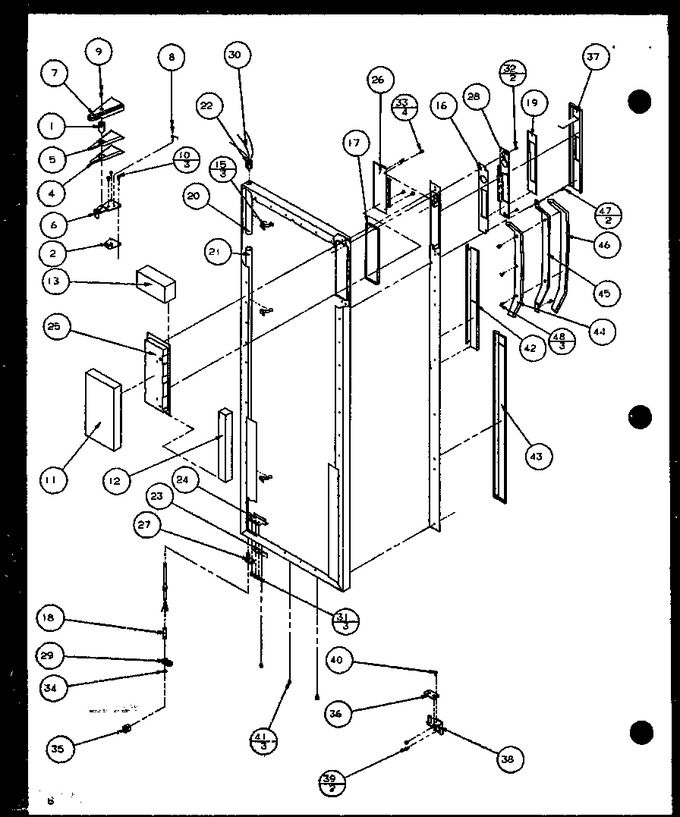

Diagram for SLDE25J (BOM: P7870137W)
